The 59ZY-CJ02 is a high-torque, low-speed permanent magnet DC motor designed for industrial applications requiring precise motion control and reliable performance. With its robust construction and optimized magnetic circuit, this motor delivers consistent power in compact automation systems.

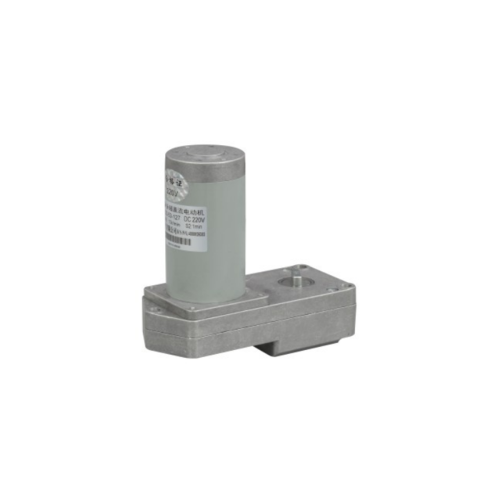

Aierway 59ZY-CJ02 permanent magnet DC motor
Description
Product introduction
The 59ZY-CJ02 is a high-torque, low-speed permanent magnet DC motor designed for industrial applications requiring precise motion control and reliable performance. With its robust construction and optimized magnetic circuit, this motor delivers consistent power in compact automation systems.
Performance Characteristics
-
High Torque Density
-
Delivers 19.1 N·m torque in a 59mm frame
-
15% higher torque output than standard 50W motors
-
-
Precision Speed Regulation
-
Integrated tachogenerator option (±1% speed accuracy)
-
Electromagnetic brake version available
-
-
Durable Design
-
Hardened steel shaft with keyway
-
Silver-graphite brushes for extended service life
-
-
Efficient Operation
-
88% typical efficiency at rated load
-
Low cogging torque design (<5% of rated torque)
-
Technical data table 1
| Part No. | Rated Voltage (V) | Rated Current (A) | Rated Power (W) | Rated Speed (r/min) | Rated Torque (N.m) | Working System (1min) |
|---|---|---|---|---|---|---|
| 592Y-CJ02 | DC220 | 0.7 | 70 | 17 | 39.40 | S2 1min |
| 592Y-CJ01 | DC110 | 1.40 | 70 | 17 | 39.40 | S2 1min |
| 592Y-CJ004 | DC48 | 3.2 | 70 | 17 | 39.40 | S2 1min |
| 592Y-CJ002 | DC24 | 6.4 | 70 | 17 | 39.40 | S2 1min |

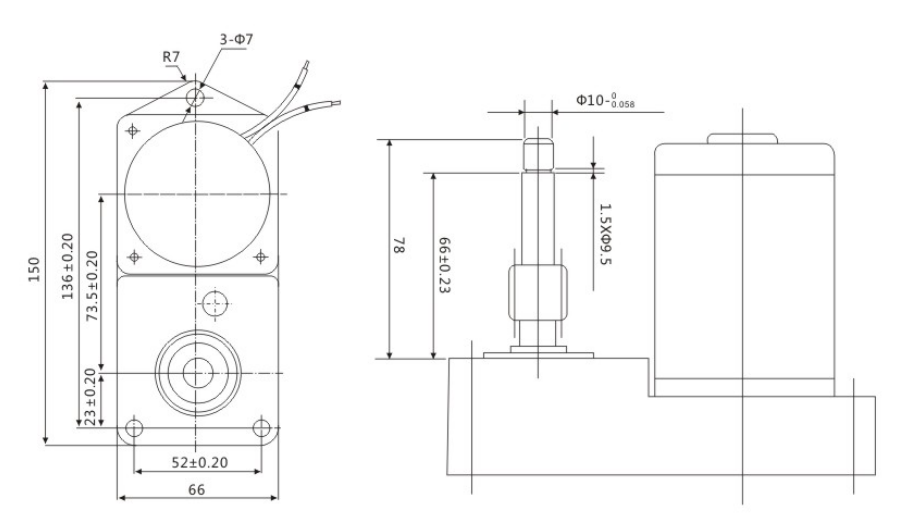

Outline and dimensions of installation
