Description

Product introduction

The HDZ Series is a line of high-performance AC/DC universal motors designed for applications requiring flexible power input options and robust performance. These motors operate seamlessly on both AC (alternating current) and DC (direct current) power sources, making them ideal for diverse industrial, commercial, and automotive applications. With a compact design and high torque-output capabilities, the HDZ series ensures reliability in demanding environments.

Key Features

1. Dual Power Supply Compatibility

   • Operates on AC 110V/220V ±10% and DC 110V/220V inputs.

   • Automatic voltage adaptation without external converters.

2. High Efficiency & Performance

   • Rated power: 600W (model-specific variants available).

   • Rated speed: 8000 RPM (adjustable via control systems).

   • Rated torque: 0.71 N·m (consistent across voltage ranges).

3. Compact & Durable Design

   • Die-cast aluminum housing for heat dissipation and lightweight operation.

   • IP54 protection (dust and splash-resistant).

   • Class B insulation (130°C thermal resistance).

4. Precision Engineering

   • Low cogging torque for smooth startups.

   • Balanced rotor for minimal vibration and noise (<65 dB).

   • Brush life exceeding 1,000 hours under rated load.

Main technical parameters of the motor

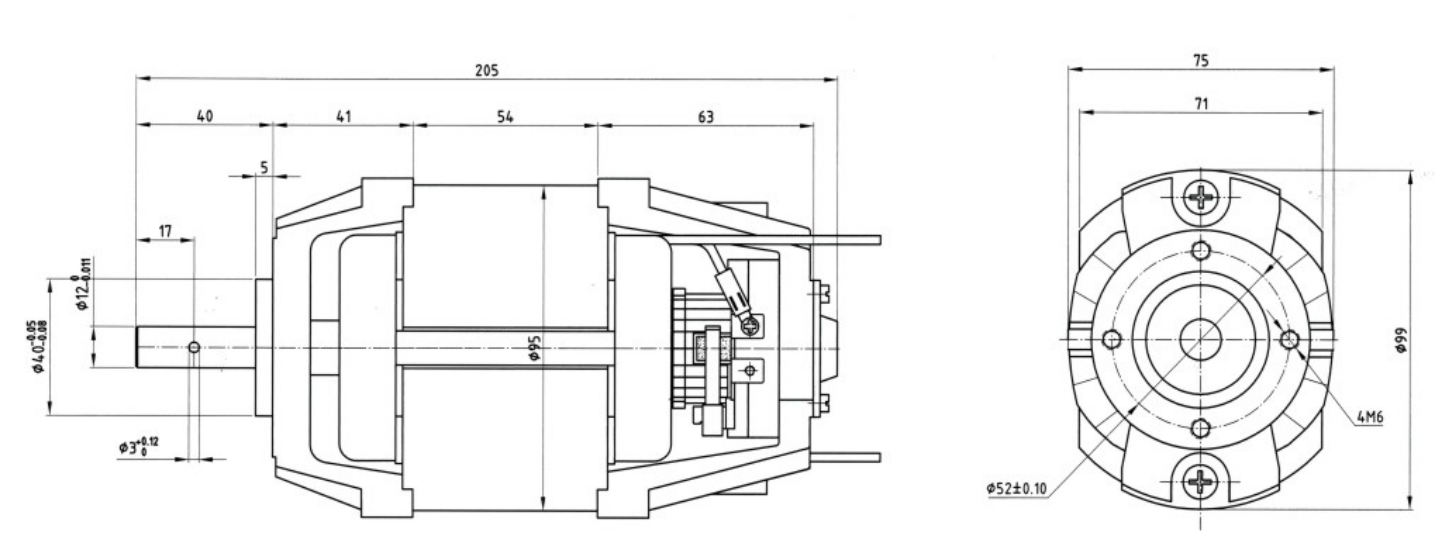

Outline and dimensions of installation
