The Series VS1 Permanent Magnet DC Motor is a high-performance, precision-engineered motor specifically designed for vacuum circuit breaker (VCB) operating mechanisms. Built for reliability and efficiency in medium-voltage (12kV–40.5kV) power distribution systems, this motor ensures fast, stable, and maintenance-free operation in critical switching applications.
Aierway series VS1 mechanism special permanent magnet DC motor
Description
Product introduction
The Series VS1 Permanent Magnet DC Motor is a high-performance, precision-engineered motor specifically designed for vacuum circuit breaker (VCB) operating mechanisms. Built for reliability and efficiency in medium-voltage (12kV–40.5kV) power distribution systems, this motor ensures fast, stable, and maintenance-free operation in critical switching applications.
Key Features
1. High Torque & Precision Control
-
High torque density (up to 50 N·m) for rapid spring charging
-
Precise positioning (±0.5°) with optional encoder feedback
-
Smooth start-stop with minimized cogging torque (<3% of rated torque)
2. Robust & Reliable Construction
-
IP67-rated sealed housing (dustproof & waterproof)
-
Stainless steel shaft & corrosion-resistant terminals
-
Class F insulation (155°C thermal resistance)
3. Smart & Adaptive Operation
-
Built-in protection (overcurrent, overheating, and stall detection)
-
MODBUS RTU communication for remote monitoring
-
Auto-recovery function after fault conditions
Main technical parameters of the motor
| 电压(V) | 电流(A) | 额定功率(W) | 额定转矩(N·m) | 额定转速(r/min) | 工作制(S2 min) |
|---|---|---|---|---|---|
| DC220、DC110 | 0.8, 1.6 | 90 | 25.5 | 155 | 1 |
Main parameters of gearbox output shaft
| 齿数 | 压力角(°) | 变位系数 | 公法线长度 |
|---|---|---|---|
| 15 | 20 | +0.53 | 7.3-0.045 |

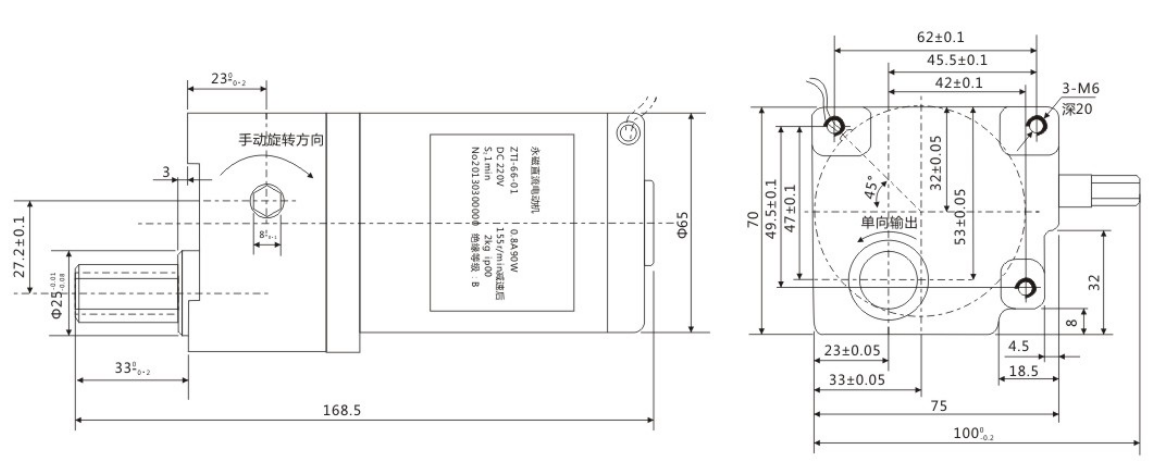

Outline and dimensions of installation
