The ZYJ-63-06 series represents high-performance planetary gear motors with two power variants (150W/200W) designed for industrial automation applications requiring precise torque transmission and compact power solutions. These units combine permanent magnet DC motors with precision planetary gearboxes in a unified housing.
Aierway ZYJ-63-06 (JN-01A)150W/ZYJ-63-06 (JN-02A)200W planetary gear motor
Description
Product introduction
The ZYJ-63-06 series represents high-performance planetary gear motors with two power variants (150W/200W) designed for industrial automation applications requiring precise torque transmission and compact power solutions. These units combine permanent magnet DC motors with precision planetary gearboxes in a unified housing.
Key Features
-
Precision Gearbox
-
3-stage planetary gear system
-
≥92% transmission efficiency
-
Backlash <1 arcmin (adjustable to <0.5 arcmin)
-
-
Motor Performance
-
Class F insulation (155°C)
-
IP65 protection (standard)
-
Electromagnetic brake option (30V DC)
-
-
Mechanical Design
-
63mm flange mounting (ISO 9409-1 compliant)
-
Hardened steel output shaft (Ø20mm keyed)
-
Vibration level <2.8mm/s (ISO 10816-3)
-
Main technical parameters of the motor
| 电压(V) | 电流(A) | 额定功率(W) | 额定转速(r/min) | 工作制(S2 min) | i | L1 | L2 | L3 |
|---|---|---|---|---|---|---|---|---|
| DC220V | 1.2 | 150 | 2260 | 5.5 | 1 | 107 | 195.5 | 254.5 |
| DC220V | 1.5 | 200 | 2374 | 5.5 | 1 | 127 | 215.5 | 274.5 |
Main parameters of gears
| 齿数(Z) | 模数(M) | 压力角(°) | 变位系数(X) | 跨测齿数(n) | 公法线长度(W) |
|---|---|---|---|---|---|
| 14 | 2 | 20 | +0.25 | 2 | 9.64519 |

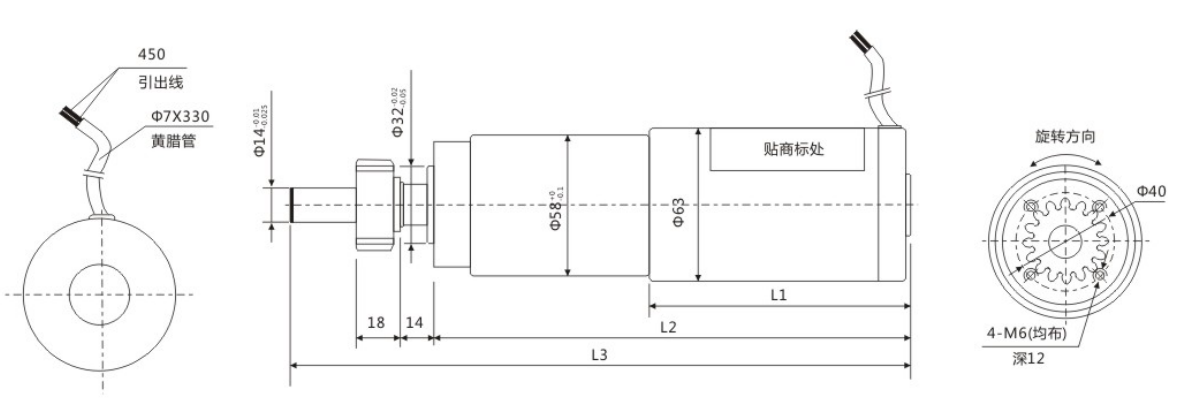

Outline and dimensions of installation
