The ZYJ-66-01(FZ12) is a specialized permanent magnet DC motor designed for FZ12 series load switches in medium-voltage distribution systems (12-40.5kV). This motor delivers precise torque control and reliable operation for spring-charging mechanisms in harsh electrical environments.
Aierway ZYJ-66-01(FZ12)permanent magnet DC motor with FZ12 load switch
Description
Product introduction
The ZYJ-66-01(FZ12) is a specialized permanent magnet DC motor designed for FZ12 series load switches in medium-voltage distribution systems (12-40.5kV). This motor delivers precise torque control and reliable operation for spring-charging mechanisms in harsh electrical environments.
Key Features
FZ12 Load Switch Integration
-
Direct coupling with FZ12 spring mechanism
-
Anti-vibration mounting design
-
Corrosion-resistant terminals
-
MODBUS RTU communication (optional
-
Certifications
-
IEC 62271-1 compliant
-
GB/T 11022 certified
-
CE, RoHS, UL listed
-
3-year standard warranty
-
Main technical parameters of the motor
| 电压(V) | 额定电流(A) | 额定功率(W) | 额定转矩(N·m) | 额定转速(r/min) |
|---|---|---|---|---|
| DC220、DC110 | 12、24 | 120 | 267 | 17 |
Main Parameters of Output Gear
| 齿数 | 压力角(°) | 公法线长度 | 跨测齿数 |
|---|---|---|---|
| 15 | 20 | 11.6-0.016 -0.011 | 2 |

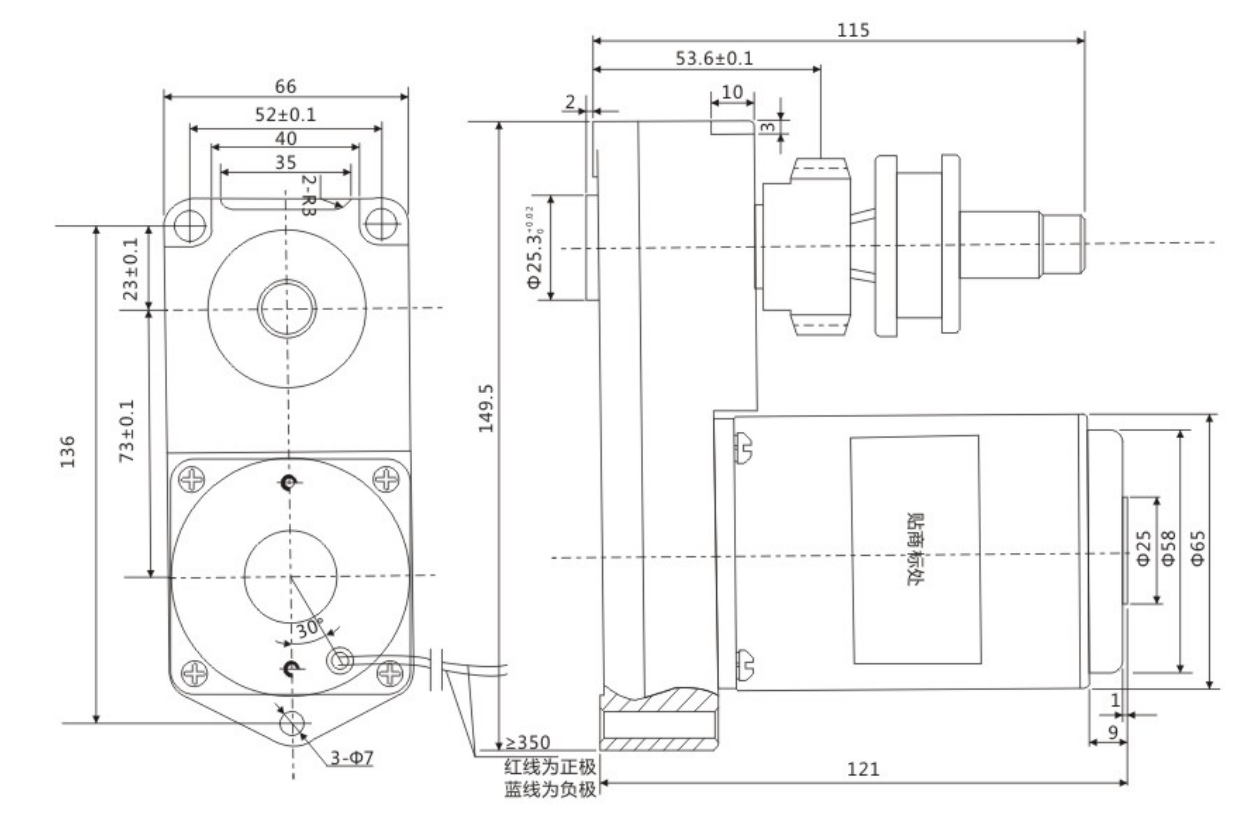

Outline and dimensions of installation
