Ganged Operation of Magnetic Actuator The switchgear is operated by asingle magnetic actuator ganged with the three vacuum interrupters for bothtripping and closing.

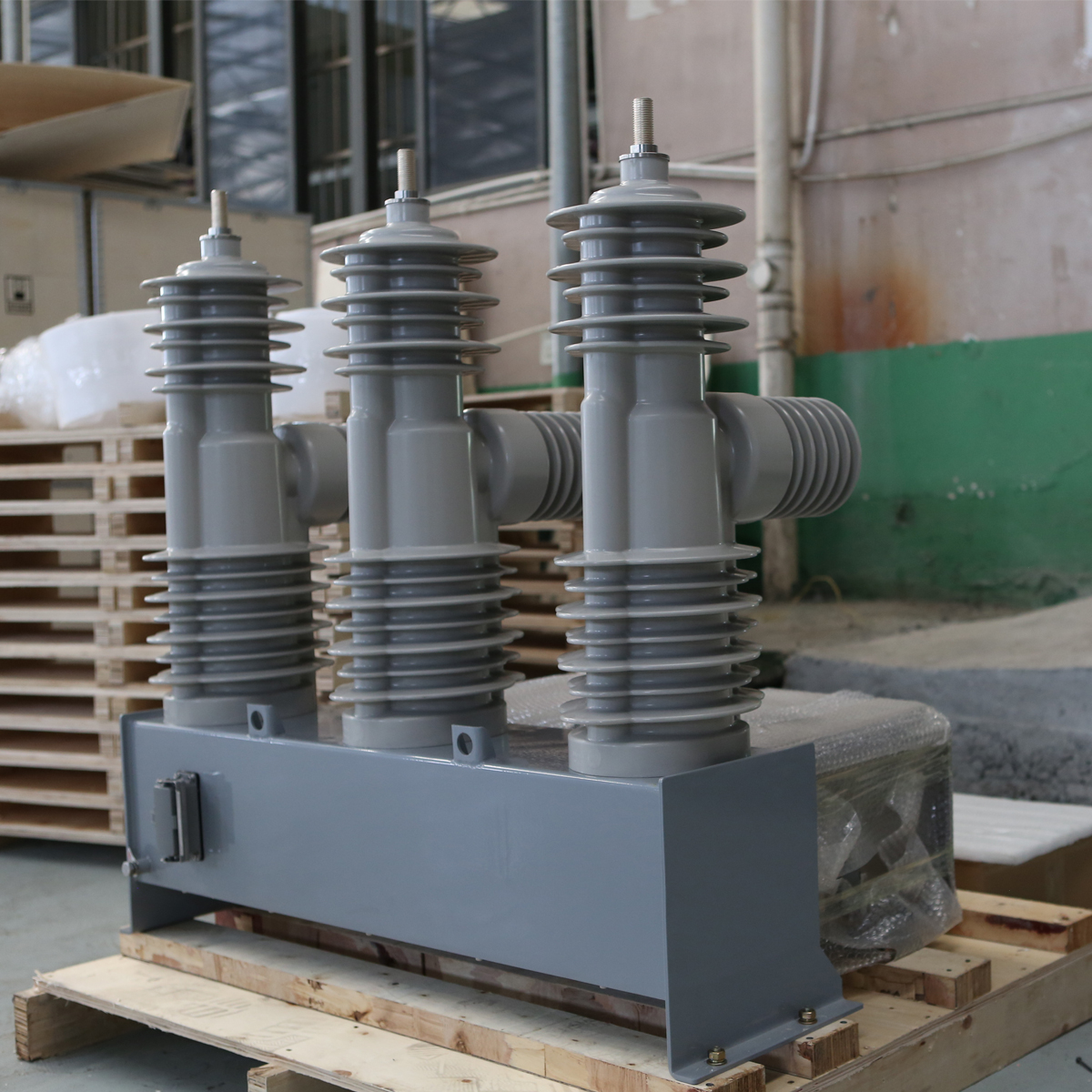

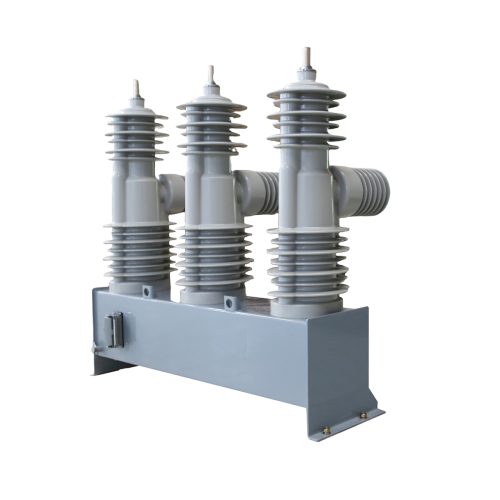

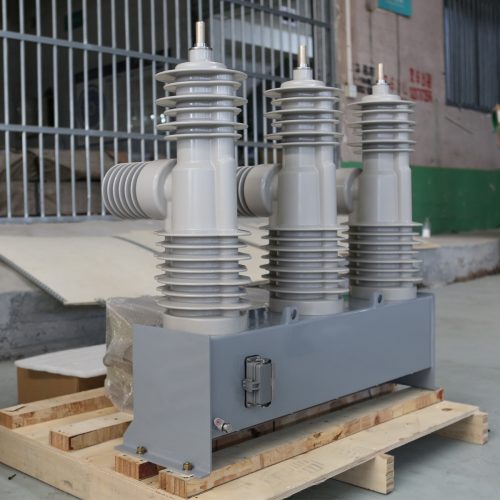

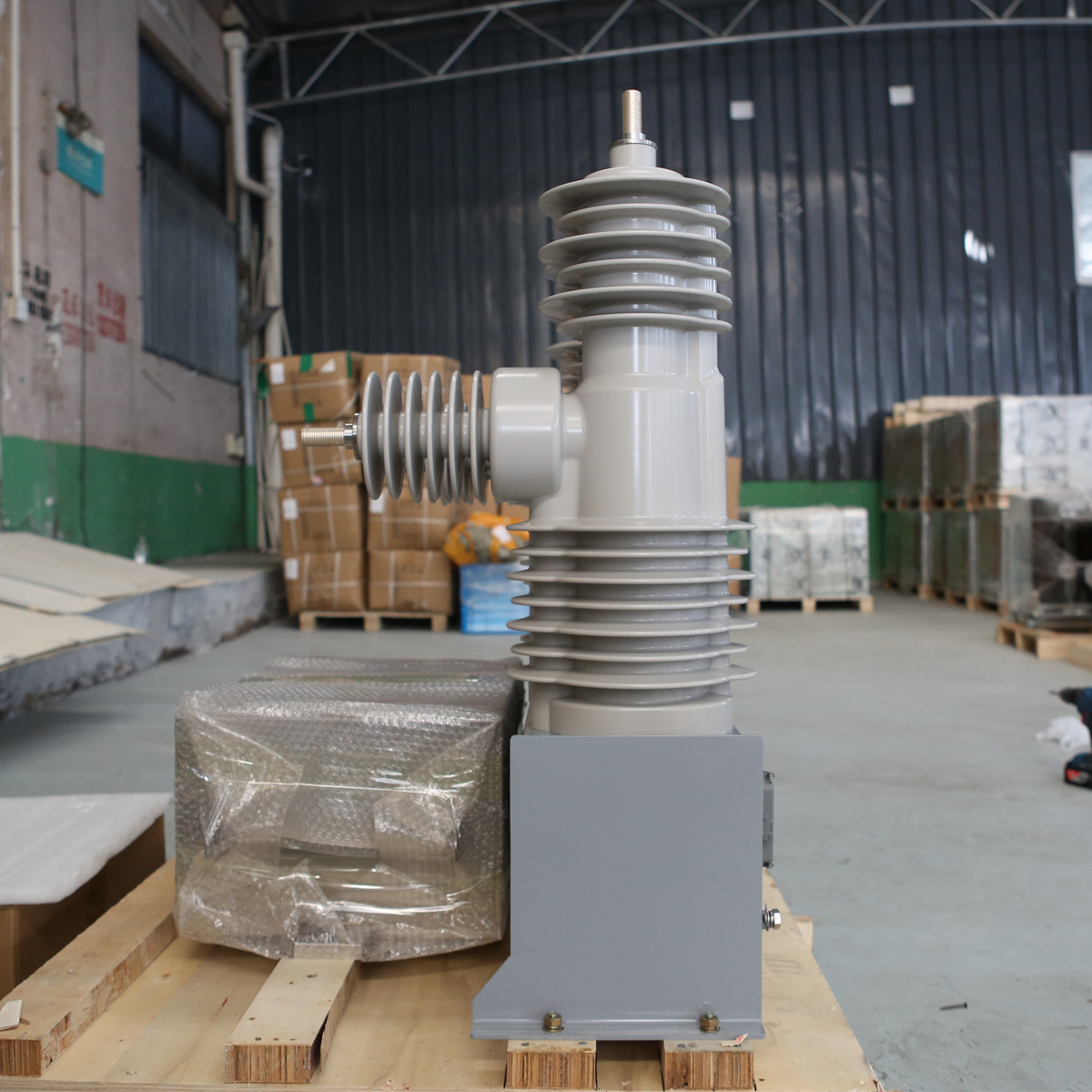

Automatc circlit Recloser 15-38 KV Outdoor vacuum circuit breaker
Description
- Ganged Operation of Magnetic Actuator The switchgear is operated by asingle magnetic actuator ganged with the three vacuum interrupters for bothtripping and closing.

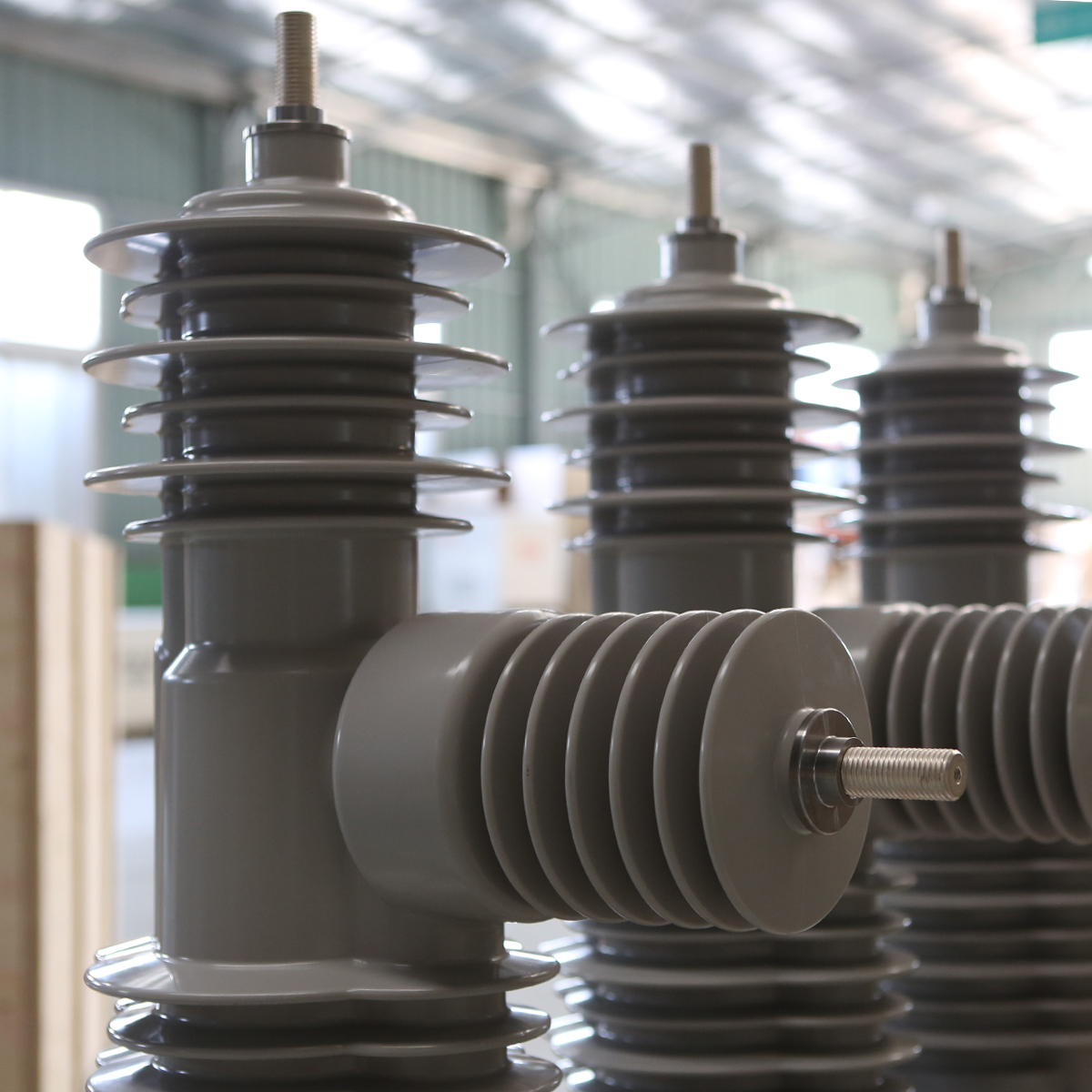

- Robust Epoxy Resin Housing The vacuum interrupters are encapsulatedwith robust hydrophobic epoxy resin housing of unibody casting, featuringthorough insulation to ensure paramount dielectric characteristic.
- Rugged Powder Coated Tank The magnetic actuator and associatedmechanism is enclosed in the rugged powder coated tank. The strong basewith special surface finishing ensures the capability of working under variousenvironmental conditions.
- The hydrophobic epoxy resin housings are firmly bolted to the lid.
- An external pointer, clearly visible on the base oftank, indicates the “openor “closed” state of the switchgear. Red for “closed” and Green for “open”pulling the yellow ring with hot stick to manually latch the switchgear toopen”
