FLN36-24KV indoor AC high-voltage sulfur hexafluoride load switch is suitable for three-phase AC 50Hz, rated voltage 24kV ring network power supply or double-radiation power supply system, used for closing and breaking load current and overload current, and can also be used for closing and breaking no-load long lines, no-load transformers and capacitor banks, etc. The series combination of load switch and current-limiting fuse can replace the circuit breaker, that is, the load switch is responsible for closing and breaking various load currents, while the current-limiting fuse is responsible for breaking larger overload currents and short-circuit currents.

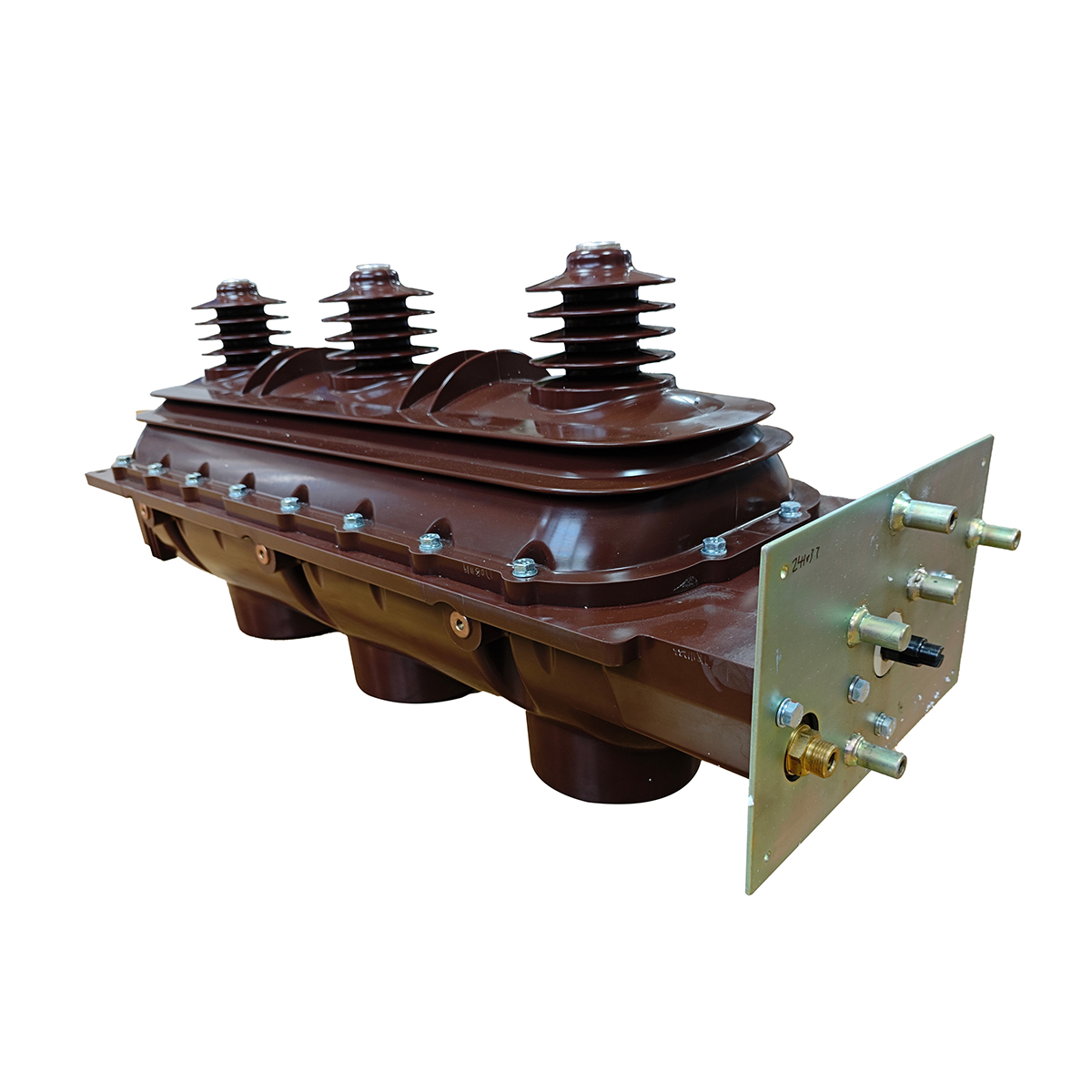

FLN36-24KV High Voltage SF6 Load Break Switch Spacing 275mm
Description
FLN36-24KV indoor AC high-voltage sulfur hexafluoride load switch is suitable for three-phase AC 50Hz, rated voltage 24kV ring network power supply or double-radiation power supply system, used for closing and breaking load current and overload current, and can also be used for closing and breaking no-load long lines, no-load transformers and capacitor banks, etc. The series combination of load switch and current-limiting fuse can replace the circuit breaker, that is, the load switch is responsible for closing and breaking various load currents, while the current-limiting fuse is responsible for breaking larger overload currents and short-circuit currents.
- Operating environment
- Altitude: The maximum altitude of the equipment installation site is 1000m;
- Ambient air temperature: upper limit +40C, lower limit -15C;
- Ambient humidity: daily average relative humidity is not more than 95%, monthly average relative humidity is not more than 90%;
Earthquake: earthquake intensity does not exceed 8 degrees; - Ambient air should not be obviously polluted by corrosive and flammable gases, water vapor, etc., and there should be no frequent severe vibrations.

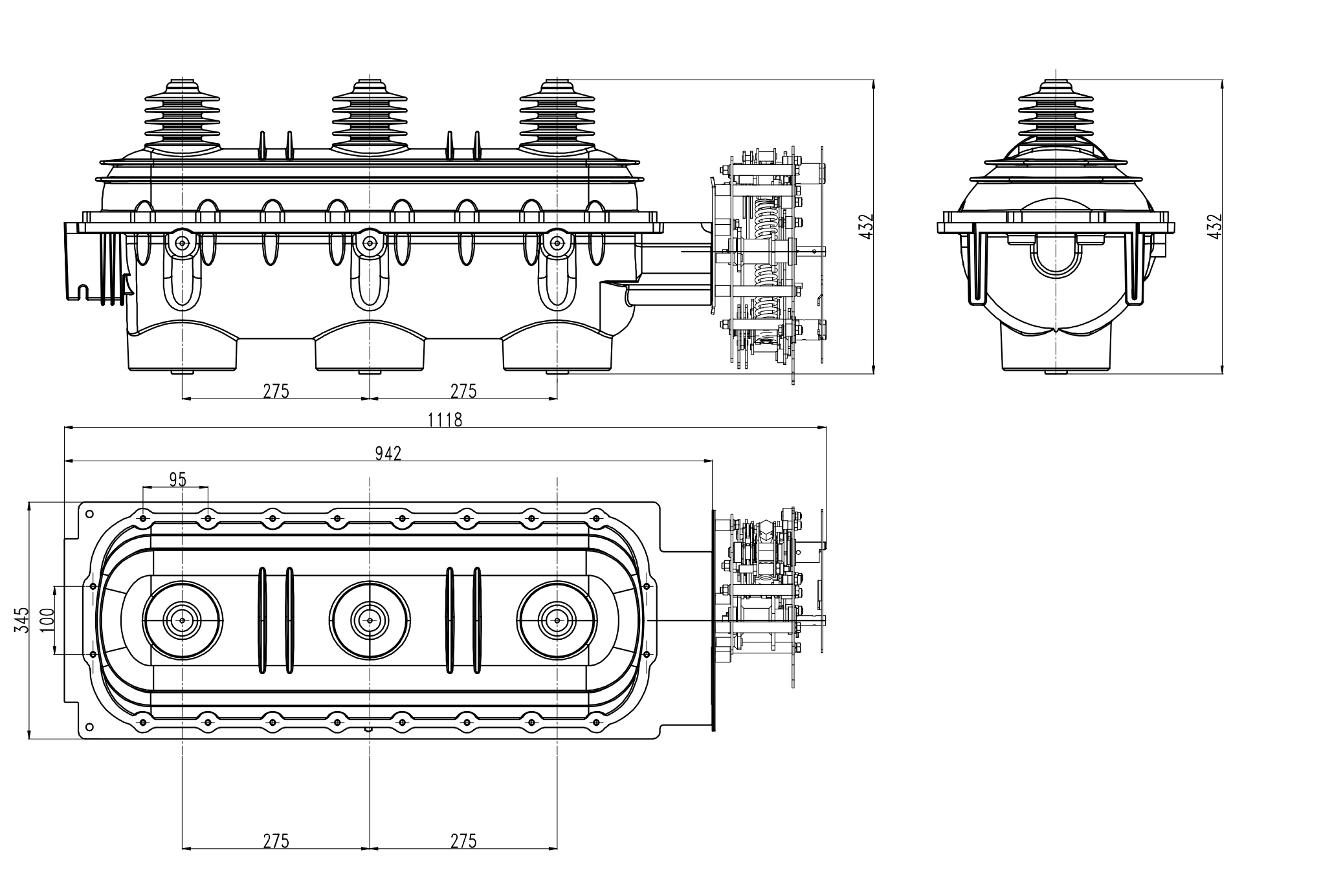

Product size：
