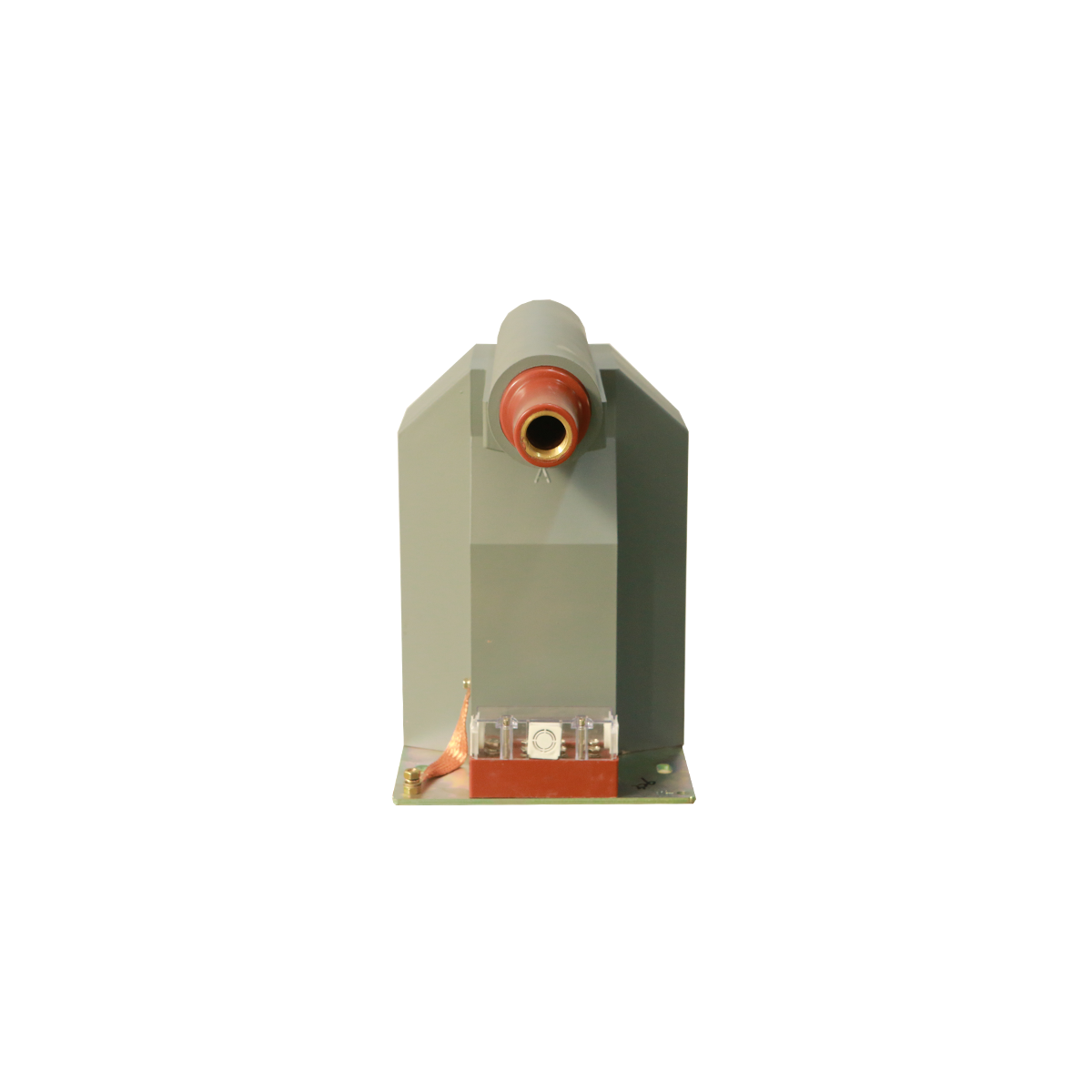

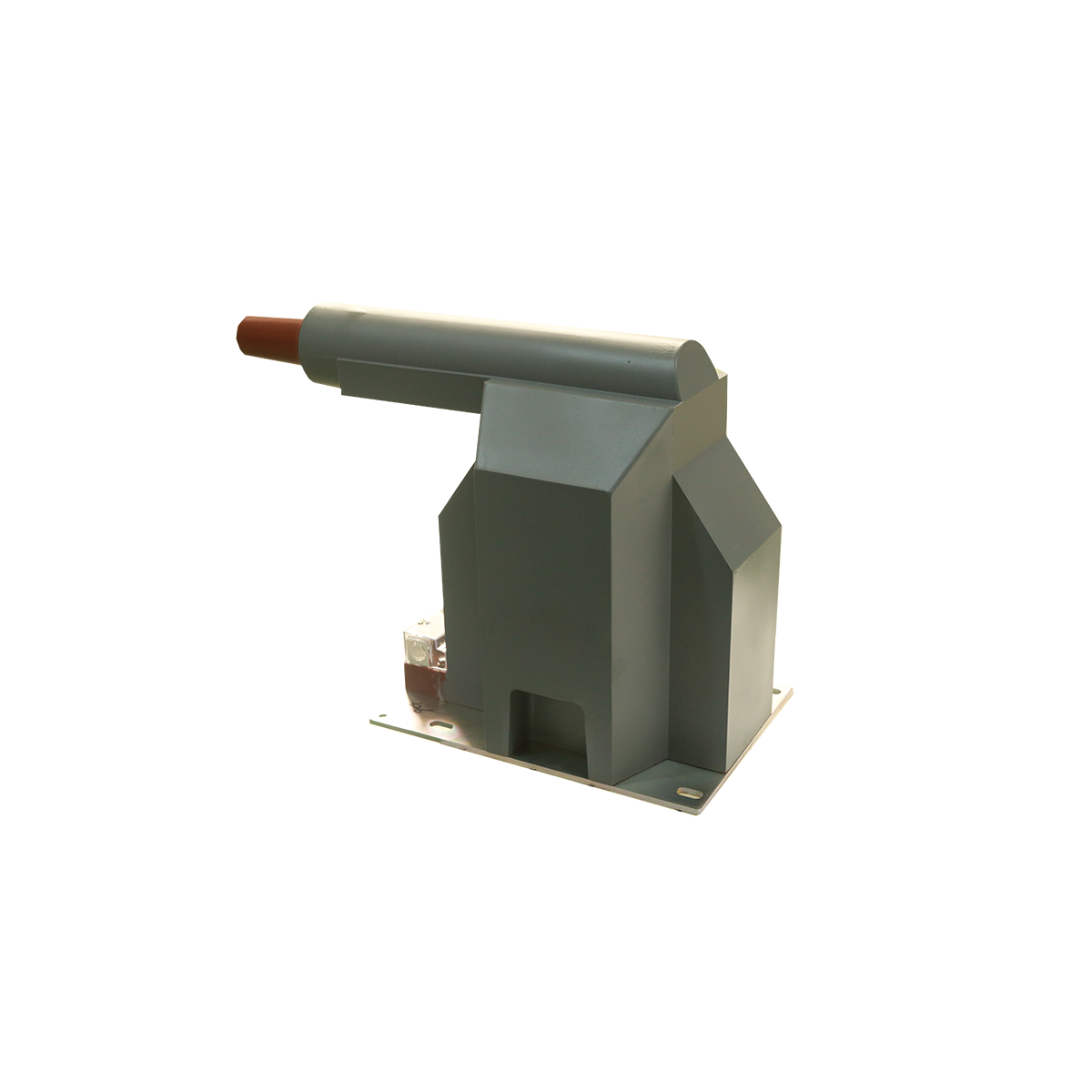

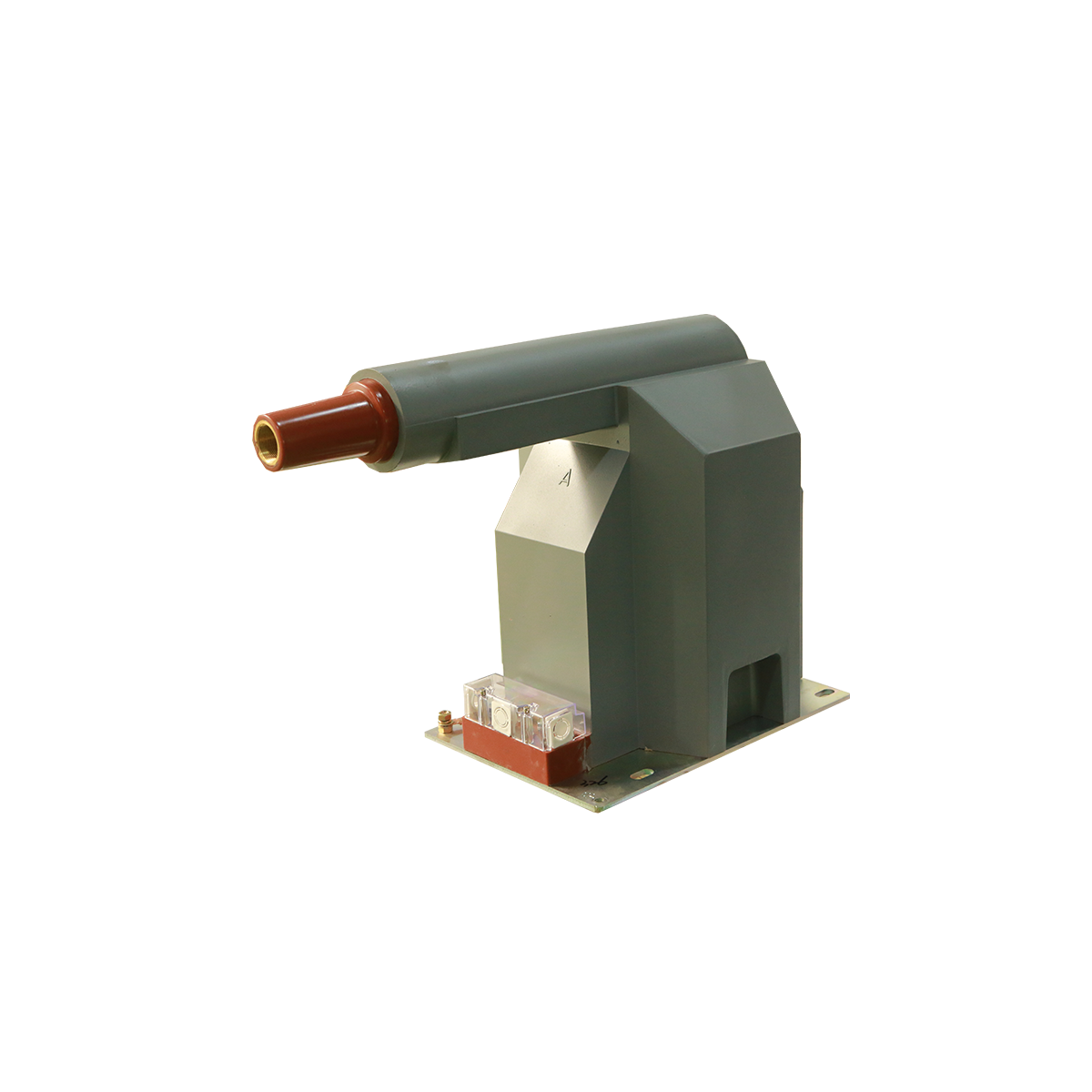

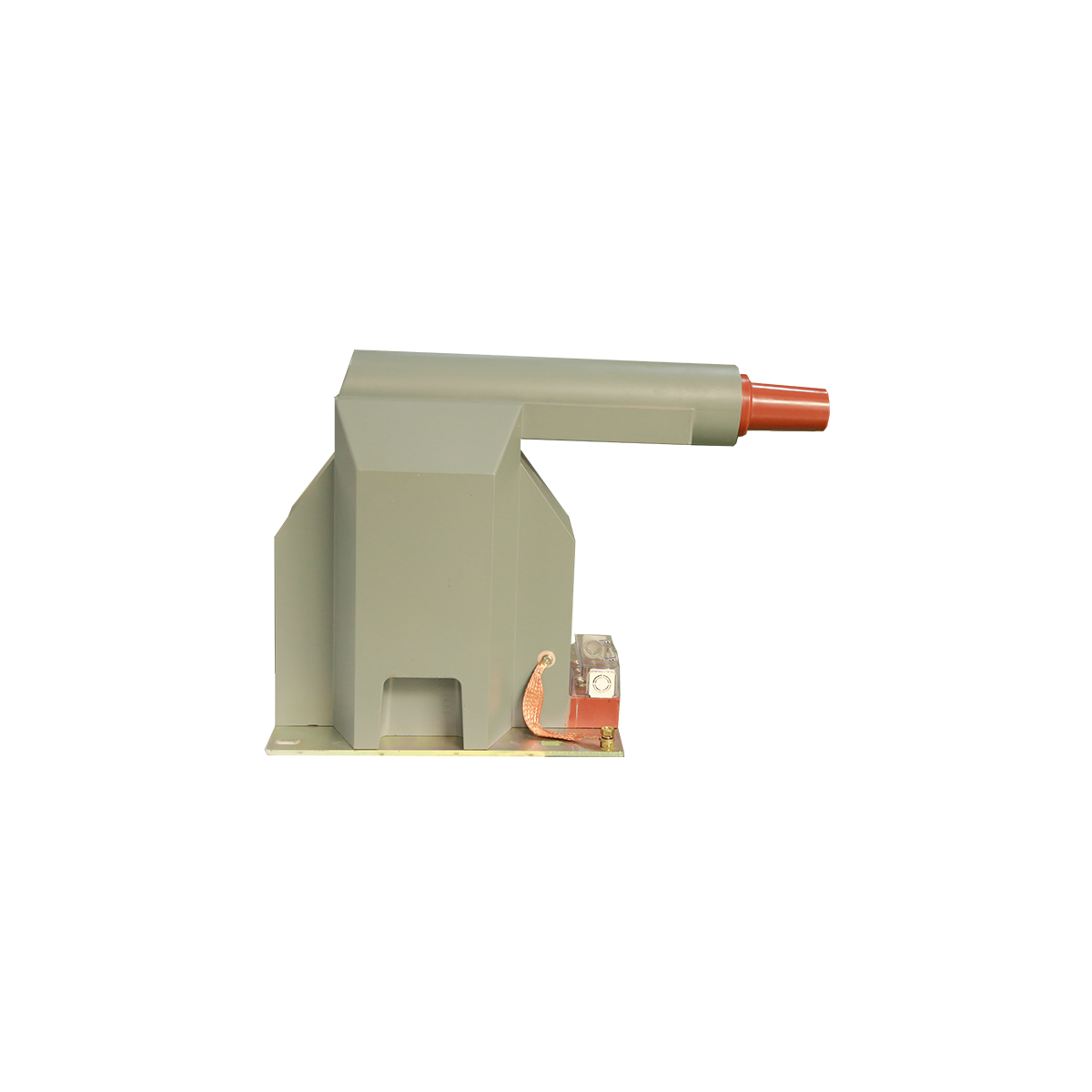

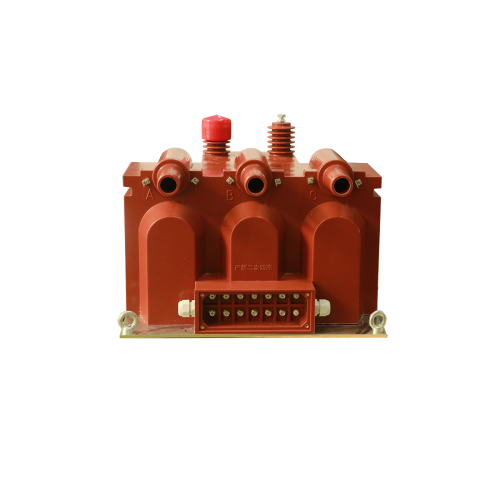

Aierway JDZX16-35R Voltage Transformer

The JDZX16-35R is a high-precision, resin-encapsulated voltage transformer specifically engineered for medium-voltage power distribution systems. Designed to deliver exceptional performance in demanding electrical environments, this voltage transformer provides accurate voltage transformation for metering, protection, and monitoring applications in 35kV networks.



Description

Product introduction

The JDZX16-35R is a high-precision, resin-encapsulated voltage transformer specifically engineered for medium-voltage power distribution systems. Designed to deliver exceptional performance in demanding electrical environments, this voltage transformer provides accurate voltage transformation for metering, protection, and monitoring applications in 35kV networks.

Key Features & Benefits

✔ Precision Performance
·Measurement accuracy: Class 0.2, 0.5 (IEC 61869-3)
·Protection accuracy: Class 3P, 6P
·Ensures reliable voltage transformation for critical applications

✔ Robust Construction
·Advanced epoxy resin encapsulation technology
·Excellent resistance to environmental stresses
·Superior dielectric strength and mechanical durability

✔ Maintenance-Free Operation
· Dry-type design eliminates oil leakage risks
·Hermetically sealed for maximum reliability
· Long service life with minimal maintenance requirements

✔ Compact & Versatile Design
·Space-saving form factor
·Multiple mounting options for flexible installation
·Suitable for both indoor and outdoor applications

✔ Safety & Compliance
· Meets IEC 60044-2 and GB 1207 standards
·Comprehensive safety features
Technical data table

Type Rated voltage ratio Accuragy class combination Rated secodary output(vA) Secondary heat limit output
0.2 0.5   3 3(6)P
 JDZX16-35R 35/ √30.1/ √30.1/3 0.2(0.5)/3(6)P 30 50 100 500
35/ √30.1/ √30.1 √30.1/3 0.2/0.5/3(6)P 30 50 100
35/ √30.1/ √30.22/ √30.1/3 0.5/3/3(6)P 30 50   400 100

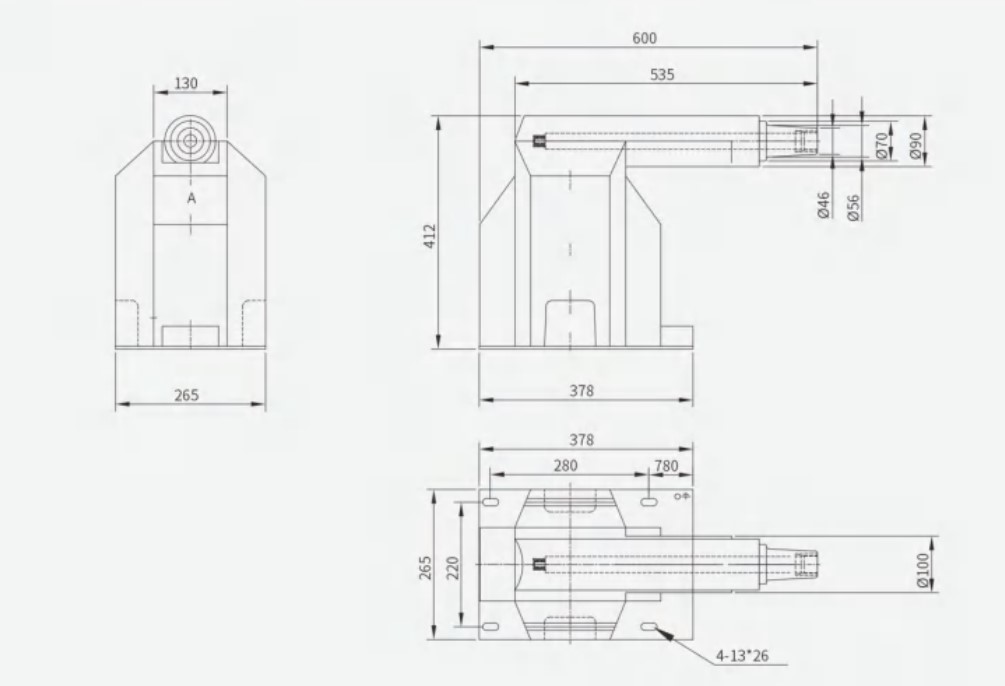

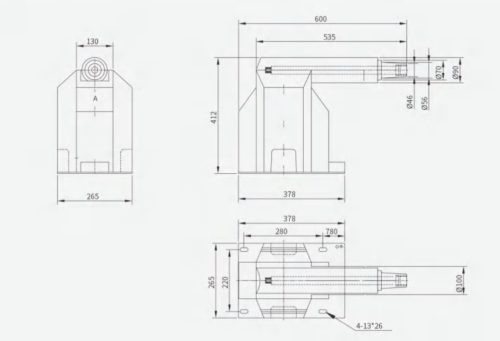

Outline and dimensions of installation

JDZX16-35R
