The LXK is a high-sensitivity zero-sequence current transformer (ZSCT) designed for ground fault detection and protection in low-voltage (LV) and medium-voltage (MV) power systems. It accurately measures residual current to prevent electrical hazards and improve system reliability.

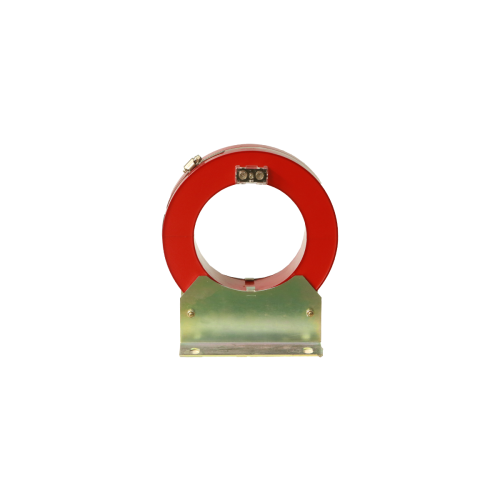

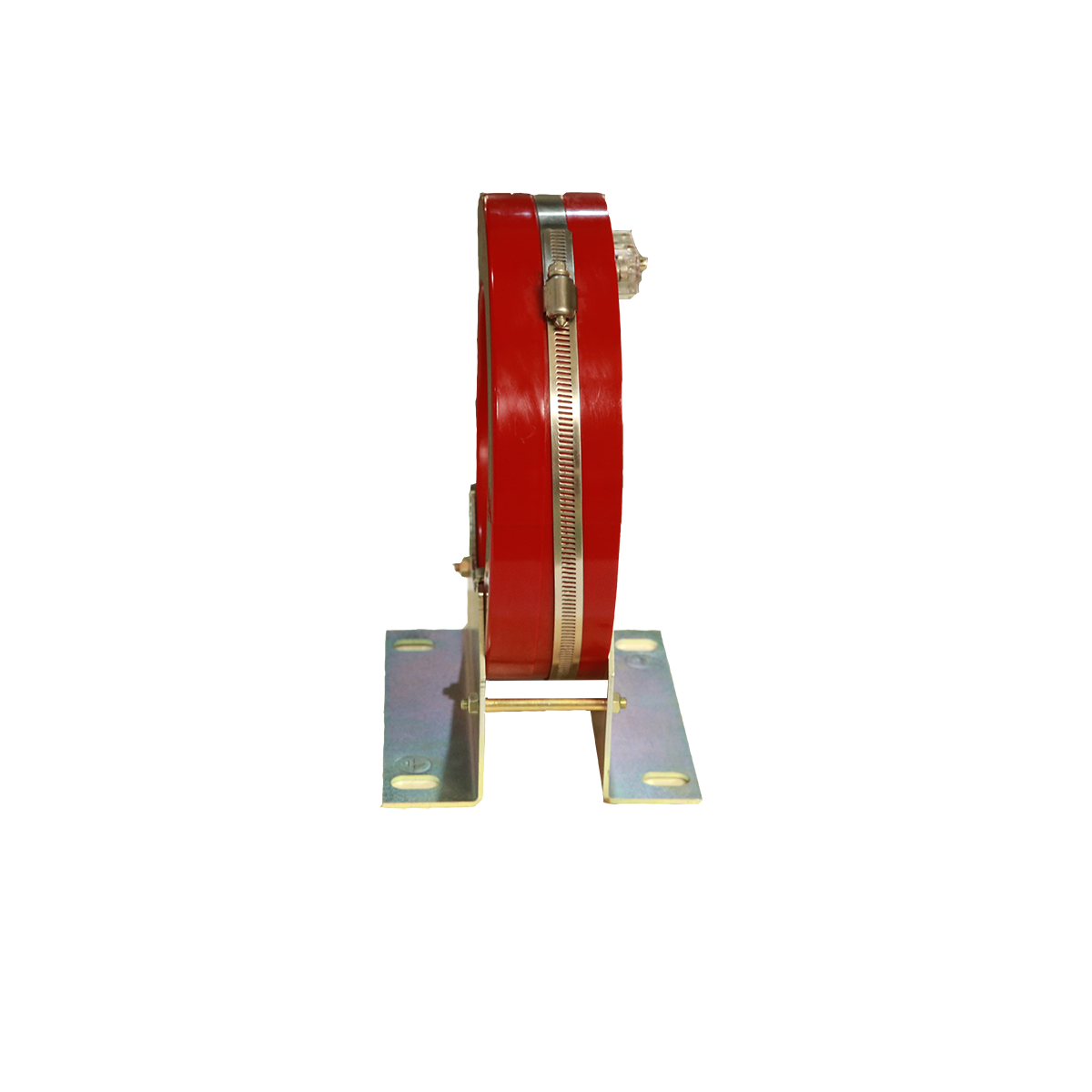

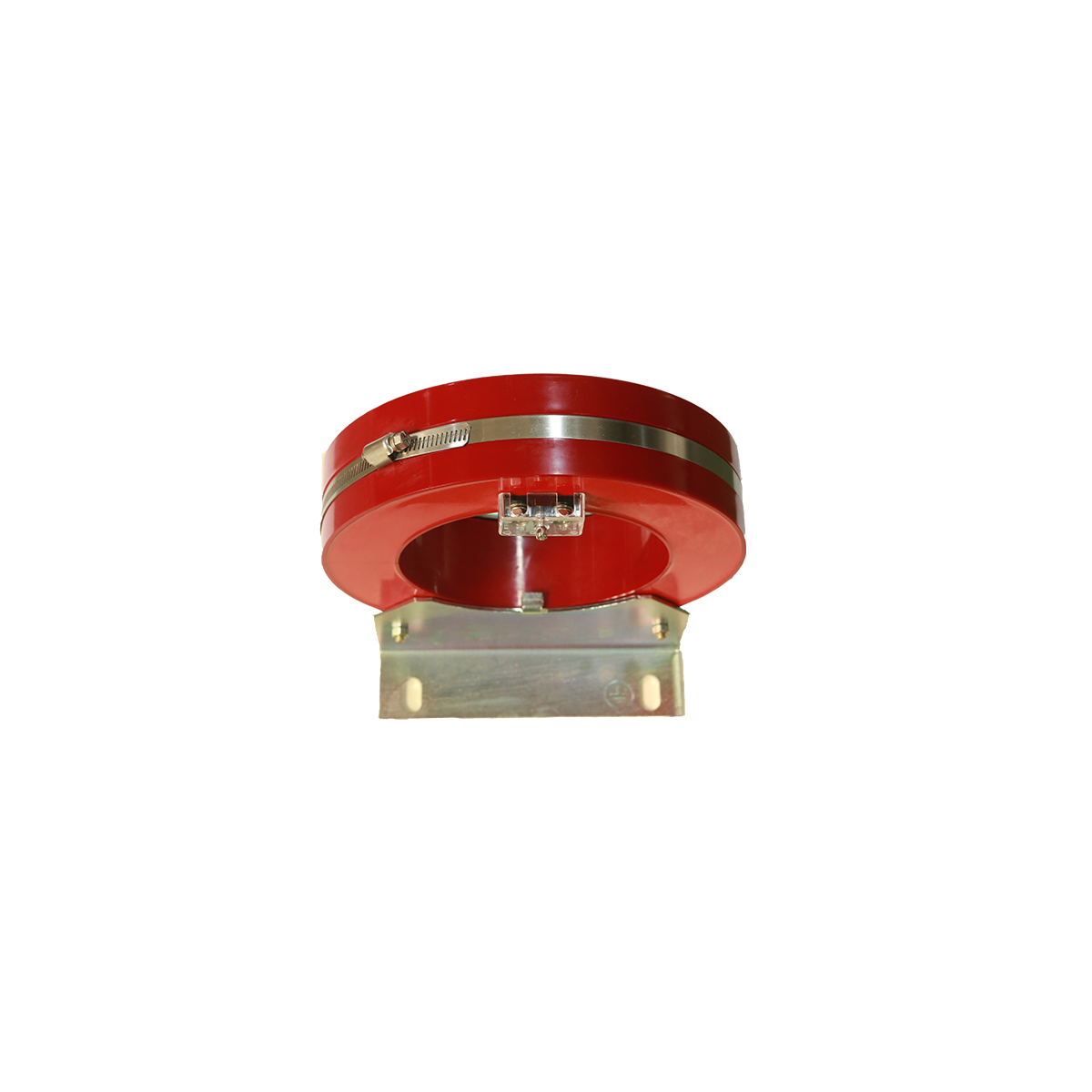

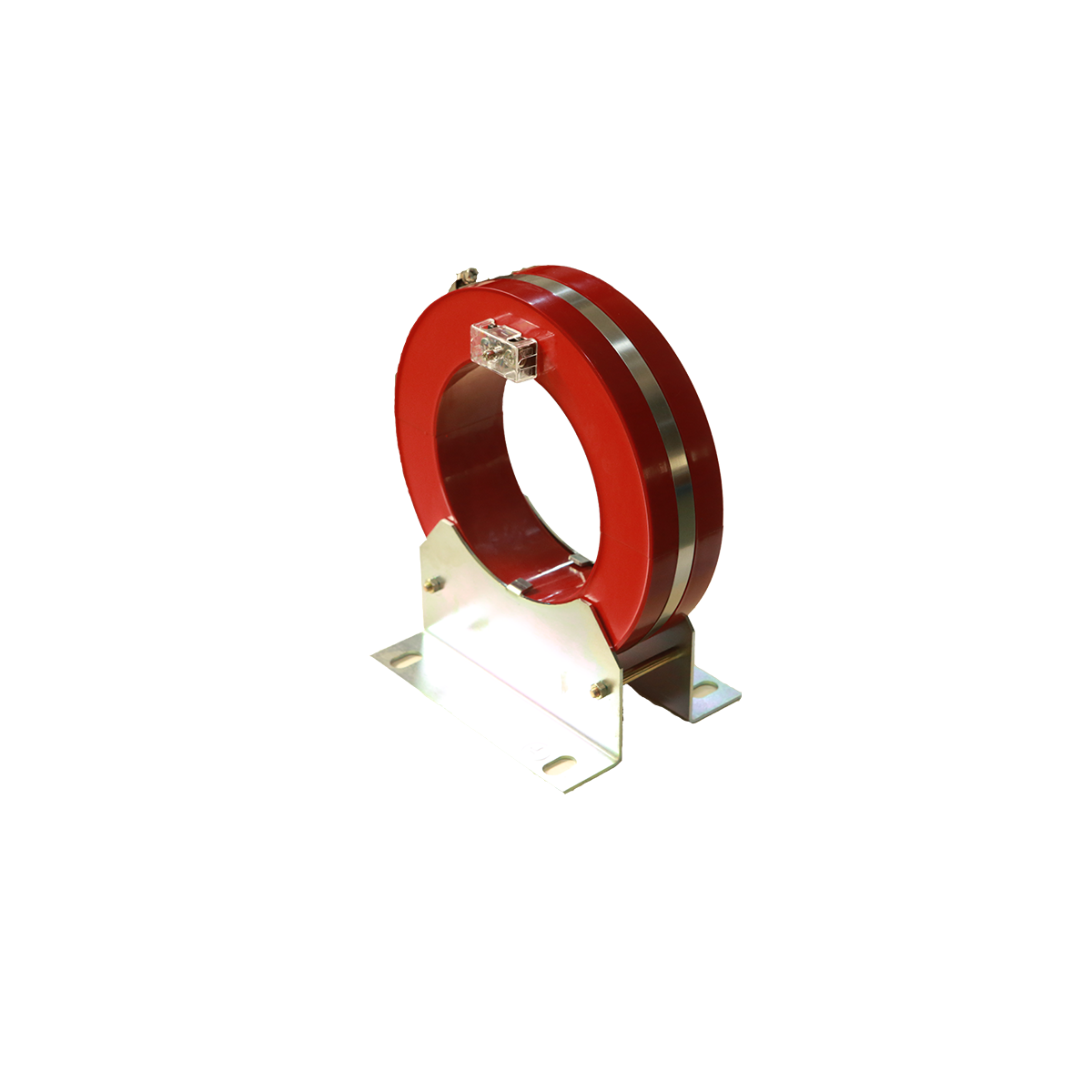

Aierway LXK Zero sequence transformer
Description
Product introduction
The LXK is a high-sensitivity zero-sequence current transformer (ZSCT) designed for ground fault detection and protection in low-voltage (LV) and medium-voltage (MV) power systems. It accurately measures residual current to prevent electrical hazards and improve system reliability.
Key Features
·High Sensitivity– Detects mA to A-level leakage currents for early fault warning
·Wide Frequency Response – Works with 50Hz/60Hz and high-frequency signals (for harmonics monitoring)
·Compact & Lightweight – Easy installation on cables or busbars
·Robust Construction – Resin-encapsulated for moisture & corrosion resistance
·Multiple Output Options –Analog (0-1A/0-5V) or digital (RS485, 4-20mA)
Applications
·Ground fault protection in TN-S, IT, and TT systems
·Leakage current monitoring for solar/wind farms
·Fire prevention (detects insulation degradation
·Industrial motor protection
·Smart grid & energy management systems
Technical data table
| A | B | C | H | ⑦d | OD | h | ||||||
| LXK-②80 | 110 | 90 | 57 | 185 | 80 | 165 | 100 | |||||
| LXK-100 | 110 | 90 | 57 | 205 | 100 | 180 | 110 | |||||
| LXK-120 | 110 | 90 | 57 | 225 | 120 | 205 | 120 | |||||
| LXK-Q120/80 | 110 | 113 | 80 | 275 | 120 | 250 | 155 | |||||
| LXK-2150 | 150 | 117 | 57 | 265 | 155 | 235 | 150 | |||||
| LXK-O150/80 | 150 | 140 | 80 | 295 | 155 | 280 | 165 | |||||
| LXK-②160 | 150 | 140 | 80 | 280 | 160 | 250 | 158 | |||||
| LXK-0180 | 220 | 117 | 57 | 300 | 180 | 265 | 170 | |||||
| LXK-180 | 220 | 140 | 80 | 345 | 180 | 310 | 193 | |||||
| LXK-O200 | 220 | 140 | 80 | 365 | 200 | 330 | 195 | |||||
| LXK-2240 | 220 | 140 | 80 | 385 | 240 | 350 | 205 | |||||
| LXK-2300 | 220 | 160 | 100 | 455 | 300 | 420 | 240 | |||||
Outline and dimensions of installation
