- Stock: In Stock
- Model: SRM6-24

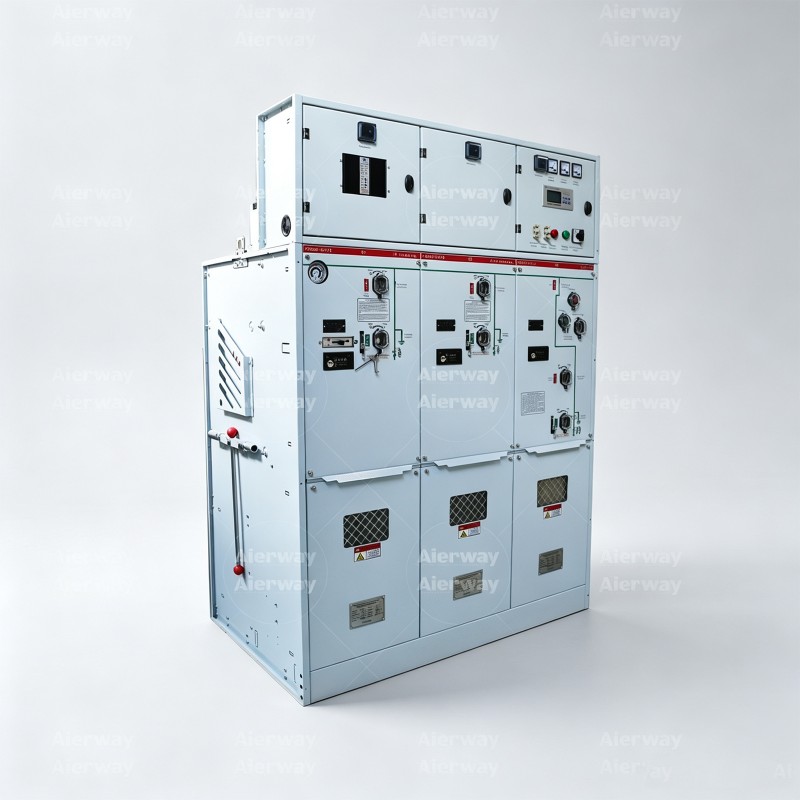

This 24kV SF6 GIS gas‑insulated switchgear is fully enclosed metal‑clad ring main unit. All live parts are sealed inside SF6 gas tank, realizing full insulation and full sealing. Compact structure, high reliability, suitable for power distribution substations, industrial parks, urban power grid projects. Complies with IEC international standards, supports customized configuration for different grid requirements.
✅Full SF6 gas insulated & fully sealed design, unaffected by humidity, dust and harsh outdoor‑indoor environment
✅Compact footprint, save installation space, ideal for limited‑space substation reconstruction projects
✅High‑safety metal‑enclosed structure, equipped with interlock protection to prevent mis‑operation
✅Compliant with IEC standard, stable performance for long‑term continuous operation, low maintenance workload
✅Modular configurable design, multiple incoming‑outgoing schemes, support customer‑tailored solutions
| Parameter (English) | Параметр (Русский) | Value / Значение |
|---|---|---|
| Rated Voltage | Номинальное напряжение | 24 kV |
| Rated Frequency | Номинальная частота | 50 Hz |
| Rated Current | Номинальный ток | 630A / 1250A |
| Short‑circuit breaking current | Ток отключения короткого замыкания | 20 kA |
| Short‑time withstand current(3s) | Кратковременный выдерживаемый ток (3с) | 20 kA |
| Gas Insulation Medium | Изоляционный газ | SF6 |
| Standard Compliance | Соответствие стандарту | IEC 62271 |
| Installation Condition | Условия монтажа | Indoor / В помещении |
| Enclosure Protection Level | Степень защиты оболочки | IP3X |
| Structure Type | Тип конструкции | Modular / Модульный |
