Aierway 12KV Center Distance 205mm

Product introduction

The Aierway 12kV Center Distance 205mm product is a compact, high-performance vacuum circuit breaker module designed for medium-voltage switchgear applications. Characterized by its standardized modular dimensions and reliable interruption capability, it serves as a core component in various 12kV distribution and protection systems, offering space-efficient integration and enhanced operational safety.

Key Features

1. Ultra-Compact Design
-205mm Center Distance: Drastically reduced phase spacing compared to conventional switchgear (typically 210-275mm).
– Space Savings: Up to 25% reduction in overall footprint compared to standard designs.

2. Advanced Insulation Technology
– Optimized Dielectric Design:** Enhanced insulation coordination to maintain safety margins at reduced dimensions.
– Composite Insulation Materials:Utilization of advanced solid and gas insulation systems.
3. Modular & Scalable Architecture
– Stackable Design: Multiple units can be combined vertically or horizontally.

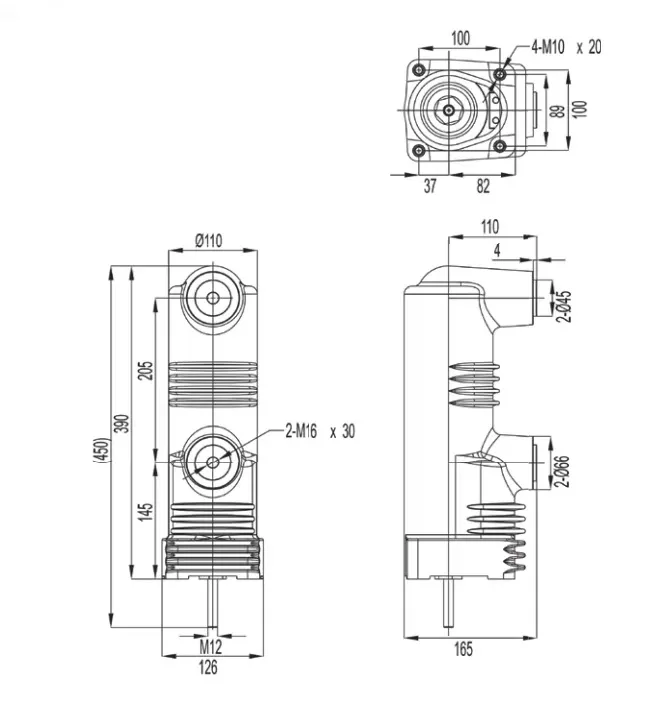

Technical data table 1
