Aierway 12KV Center Distance 310mm

Product introduction

The Aierway 12kV Center Distance 310mm is a premium, high-performance switchgear solution designed for demanding applications where maximum safety margins, superior dielectric performance, and enhanced thermal management are critical requirements. With an extended 310mm phase-to-phase center distance, this product offers the highest level of reliability and operational safety in the 12kV switchgear range, making it ideal for critical infrastructure, heavy industrial, and high-reliability utility applications.

Design Features

1.Busbar System
– 310mm Spacing: Optimal for maximum dielectric strength and thermal performance.
– High-Conductivity Copper: Electrolytic copper with tin or silver plating.
– Flexible Connections: Accommodate thermal expansion and seismic movements.

2.Circuit Breaker Modules
– Vacuum Circuit Breakers: With enhanced dielectric and interrupting capabilities.
– Condition Monitoring: Integrated sensors for contact wear, mechanism timing, and temperature.

3.Insulation System
– Enhanced Clearances: Significantly exceed standard requirements.
– Specialized Insulation: Composite materials for improved performance.
– Partial Discharge Control: Designed for minimal PD levels throughout service life.

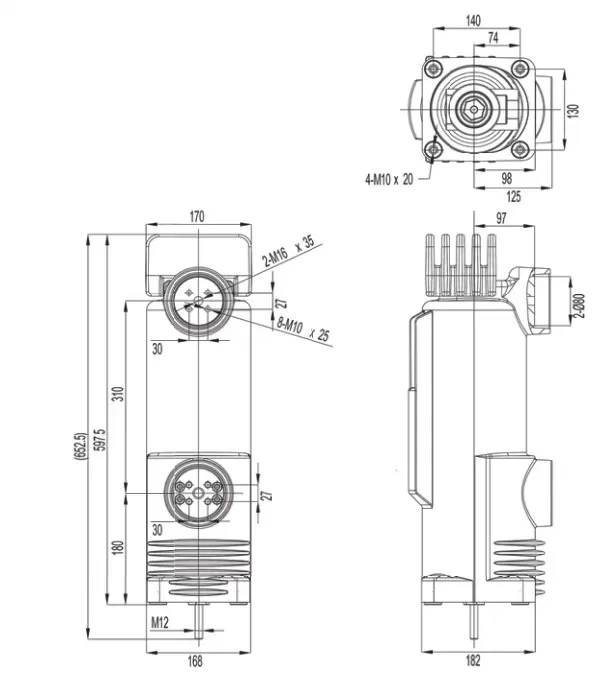

Technical data table 1
