Product introduction

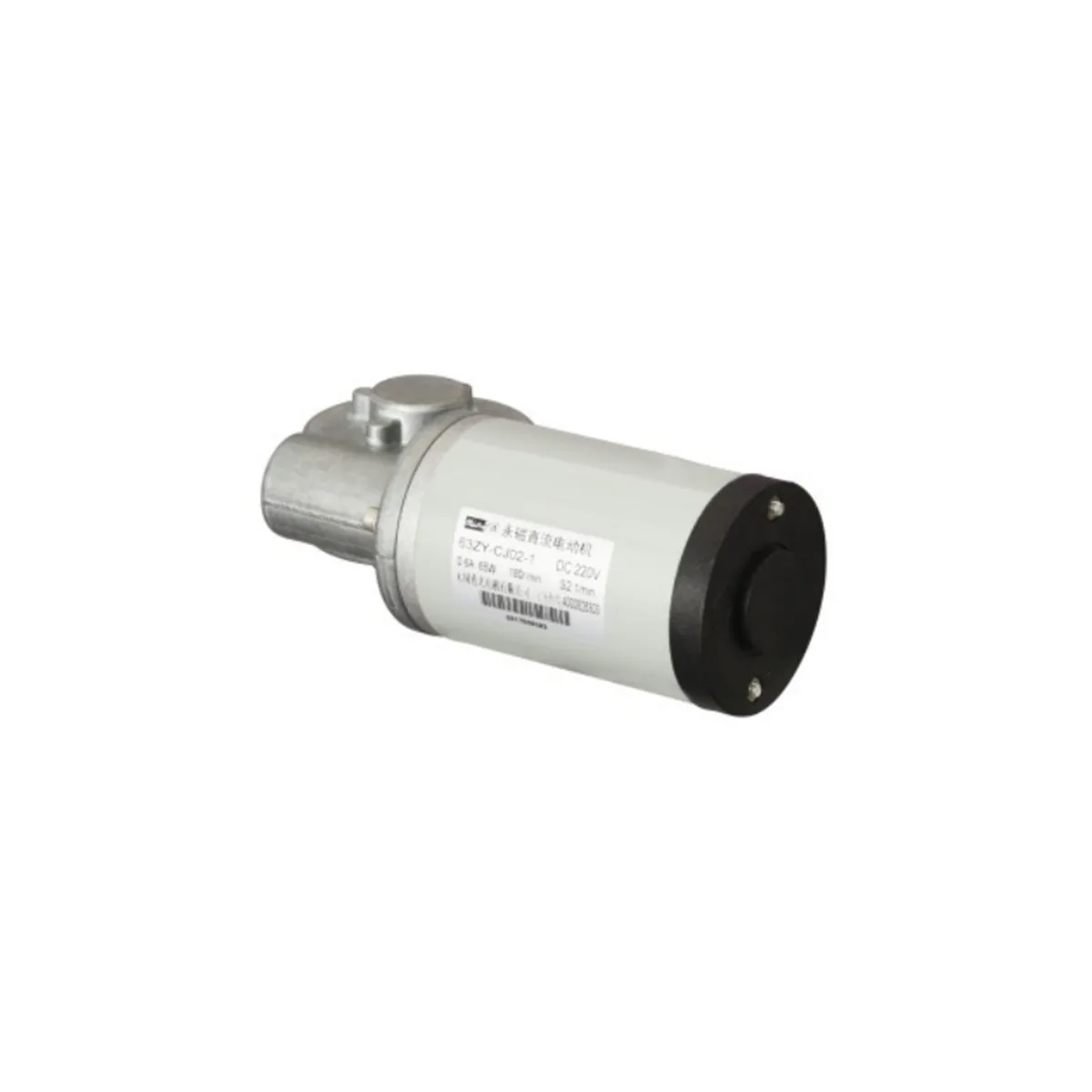

The 63ZY series represents a line of high-speed, medium-power permanent magnet DC motors designed for precision industrial applications requiring consistent performance across multiple voltage inputs. These motors maintain 90W output power with 0.28N·m torque at 3000±10% rpm across all voltage variants.
Performance Characteristics
-
Speed Stability
Maintains ±10% speed regulation under load variations
Optional tachogenerator for closed-loop control (±1% accuracy) -
Compact Powerhouse
90W output in compact 63mm frame
Power-to-weight ratio: 120W/kg -
Durable Construction
Hardened steel shaft with keyway (ISO 14x4mm standard)
Silver-graphite brushes (≥8000 hours service life) -
Thermal Management
Class B insulation withstands 130°C continuous
Aluminum cooling fins option available
Technical data table 1
| Part No. | Rated Voltage (V) | Rated Current (A) | Rated Power (W) | Rated Speed (r/min) | Rated Torque (N.m) | Working System (1min) |
|---|---|---|---|---|---|---|
| 632Y | DC220 | 0.60 | 90 | 3000±10% | 0.28 | S2 1min |
| 632Y | DC110 | 1.20 | 90 | 3000±10% | 0.28 | S2 1min |
| 632Y | DC48 | 2.75 | 90 | 3000±10% | 0.28 | S2 1min |
| 632Y | DC24 | 5.50 | 90 | 3000±10% | 0.28 | S2 1min |
Outline and dimensions of installation
