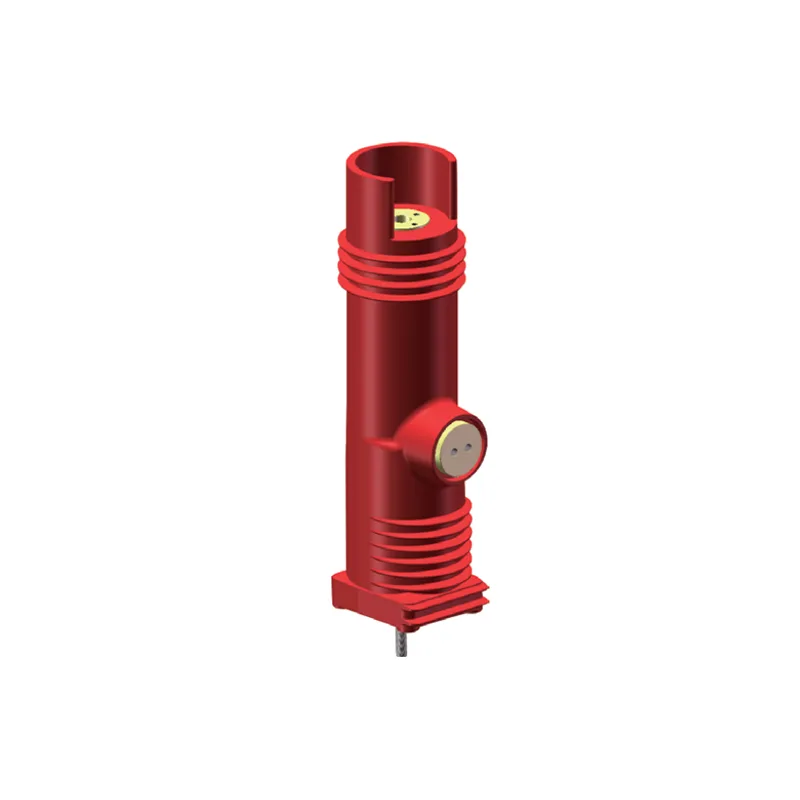

Aierway Embedded Poles 24KV Ejection

Product introduction

The Aierway Embedded Poles 24kV is an advanced solid insulated switchgear (SIS) that utilizes epoxy resin-encapsulated (embedded) vacuum interrupter poles as its core insulation technology. This design represents the latest generation of medium-voltage switchgear, offering superior safety, compactness, and environmental sustainability for 24kV applications. The “Ejection” designation refers to its fully insulated, plug-and-play separable cable connectors that allow for safe, tool-less cable connection and disconnection.

Product Features & Benfits

1. Solid Insulation System
– Material: Cycloaliphatic epoxy resin with high tracking resistance.
– Design: Three-phase busbar and switching modules are individually encapsulated.
– Performance: Provides consistent dielectric strength over the entire service life.

2. Ejection-Type (Plug-and-Play) Cable Connection
– Fully Insulated Connectors: Rubber or silicone insulated, shielded separable connectors.
– Safe & Easy Operation: Connect/disconnect under visible earth position without tools.
– Test Points: Integrated test points for voltage indication and phasing.

3. Compact & Modular Design
– Significantly Reduced Footprint: Up to 50% smaller than air-insulated switchgear.

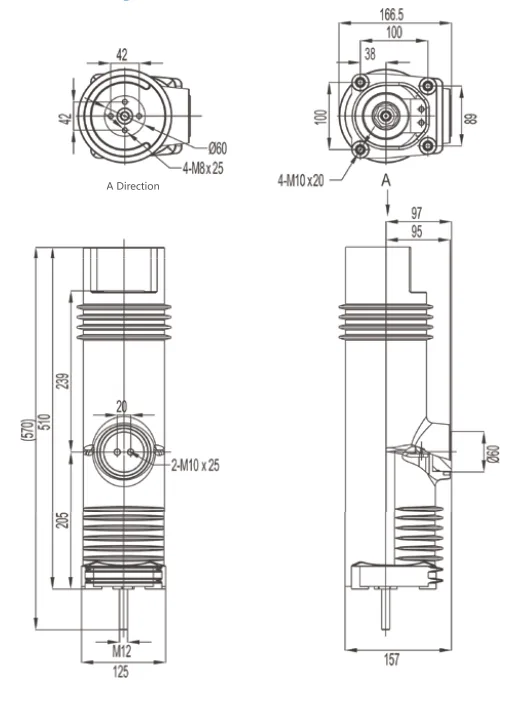

Technical data table 1
