Product introduction
The Aierway MNS Low-Voltage Withdrawable Switchgear is a state-of-the-art, modular and fully type-tested power distribution system designed for safe, reliable, and flexible control and protection of electrical circuits in low-voltage applications. It is engineered to meet the demanding requirements of modern industrial, commercial, and infrastructure power networks.
Key Features
1.Enhanced Safety:** Maximizes personnel protection through compartmentalization and withdrawable design.
2.Maximum Uptime:** Facilitates rapid maintenance and minimizes interruption through easy unit interchangeability.
3.Future-Proof Flexibility:** Modularity allows for easy system expansion or reconfiguration as load requirements change.
4.Optimized Space:** Compact and efficient design saves valuable floor space.
5.Global Compliance:** Generally designed and tested to international standards such as IEC 61439.
Technical data table
| No. | Item | GB7251.1 Low-voltage switchgear and control gear assemblies (ITA) IEC60439 《Low-voltage switchgear and control gear assemblies》 |
|---|---|---|
| 1 | Overvoltage category | IV、III |
| 2 | Pollution degree | 3 |
| 3 | Rated operational voltage (Ue) (V) | 400/660 |
| 4 | Rated insulation voltage (Ui) (V) | 660/1000 |
| 5 | Rated frequency (Hz) | 50(60) |
| 6 | Horizontal busbar （Rated current ） | ≤ 5000A |
| 7 | Horizontal busbar Rated short-time withstand current (Icw) (kA)
Horizontal busbar Rated peak withstand current (Ipk) (kA) |
50, 65, 80 (1s effective value) 105, 140-176 (0.1s maximum value) |
| 8 | Vertical busbar(Rated maximum operational current） | ≤ 1000A |
| 9 | Vertical busbar （Rated short-time withstand current） | 50kA |
| 10 | Vertical busbar （Rated peak withstand current） | 105kA |
| 11 | Degree of protection | IP30/IP40 (special note) |

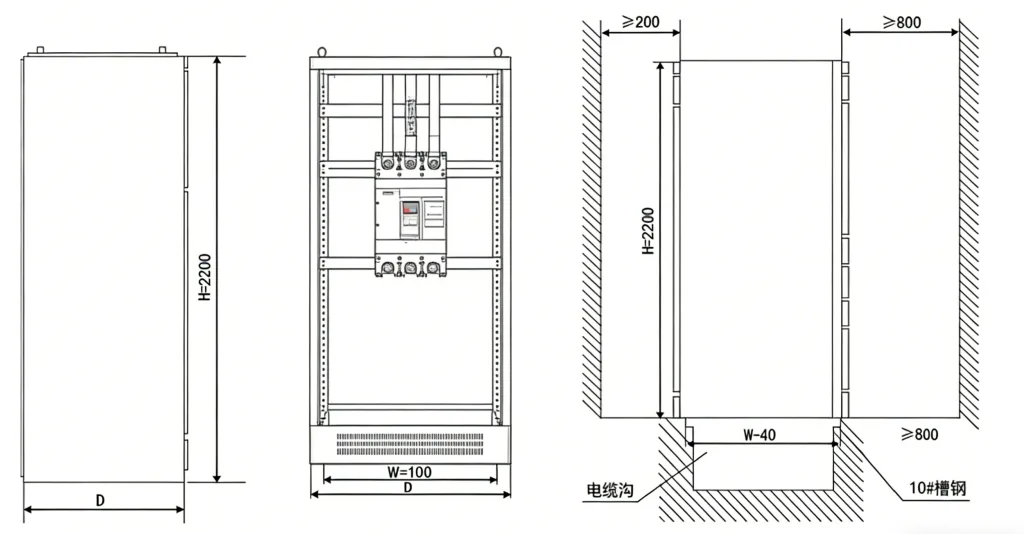

Outline and dimensions of installation
The installation of MNS series switchgear cabinets is a non-wall-flush vertical installation. The rear of the cabinet faces the outgoing cable trench. To facilitate maintenance, the distance from the rear to the wall is typically 800–1200mm, while the front side distance is determined according to installation requirements.
