The AIERWAY SC(B)H15 is an advanced, high-efficiency, and environmentally friendly dry-type transformer designed and manufactured using cutting-edge amorphous alloy core technology. It represents the next generation of power distribution equipment, combining exceptional energy-saving performance with superior operational reliability and safety.

描述

Product introduction

The AIERWAY SC(B)H15 is an advanced, high-efficiency, and environmentally friendly dry-type transformer designed and manufactured using cutting-edge amorphous alloy core technology. It represents the next generation of power distribution equipment, combining exceptional energy-saving performance with superior operational reliability and safety.

Key Features & Technologies

1. Amorphous Alloy Core
– Utilizes state-of-the-art amorphous alloy (metallic glass) as the core material.
– Exhibits extremely low hysteresis and eddy-current losses, significantly reducing no-load losses by up to 70–80% compared to traditional silicon steel transformers.

2. High Efficiency & Energy Savings
– Meets and exceeds international efficiency standards (e.g., IEC, IEEE, DOE (US), CE).
– Extremely low no-load and load losses ensure high operational efficiency, often reaching up to 99%+ under optimal conditions.

3. Applications
– Commercial and residential complexes
– Renewable energy systems (solar, wind)
– Rail transportation and traction
Technical data table

Rated capacity
(kVA)		 Voltage combination and tapping range Connection group label Loss No-load current
(%)		 Short-circuit impedance
(%)
Voltage Combination High-voltage tapping range Low pressure (kV) No-load loss (W) No-load loss (W)
100 6/6.3/6.3/10/10.5/11 ±5%    ±2×2.5%

















0.4



















Dyn11

 130 1570 1.2

4





















6
125 6/6.3/6.3/10/10.5/11 ±5%    ±2×2.5% 150 1850 1.1
160 6/6.3/6.3/10/10.5/11 ±5%    ±2×2.5% 170 2130 1.1
200 6/6.3/6.3/10/10.5/11 ±5%    ±2×2.5% 200 2530 1.0
250 6/6.3/6.3/10/10.5/11 ±5%    ±2×2.5% 230 2760 1.0
315 6/6.3/6.3/10/10.5/11 ±5%    ±2×2.5% 280 3470 0.9
400 6/6.3/6.3/10/10.5/11 ±5%    ±2×2.5% 310 3990 0.8
500 6/6.3/6.3/10/10.5/11 ±5%    ±2×2.5% 360 4880 0.8
630 6/6.3/6.3/10/10.5/11 ±5%    ±2×2.5% 420 5880 0.7
800 6/6.3/6.3/10/10.5/11 ±5%    ±2×2.5% 410 5960 0.7
1000 6/6.3/6.3/10/10.5/11 ±5%    ±2×2.5% 480 6960 0.7
1250 6/6.3/6.3/10/10.5/11 ±5%    ±2×2.5% 550 8130 0.6
1600 6/6.3/6.3/10/10.5/11 ±5%    ±2×2.5% 660 9690 0.6
2000 6/6.3/6.3/10/10.5/11 ±5%    ±2×2.5% 760 11730 0.6
2500 6/6.3/6.3/10/10.5/11 ±5%    ±2×2.5% 1000 14450 0.5

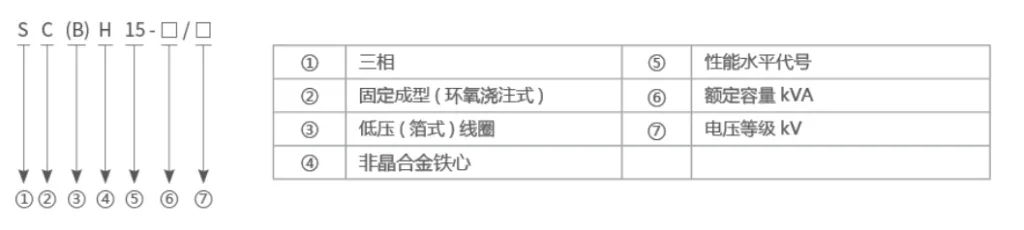

Model and Its Meaning
