Product introduction
TBBZ High-Voltage Shunt Capacitor Bank (hereinafter referred to as the device) is suitable for three-phase 10kV, 50Hz AC power systems, and is used for improving the power factor and regulating network voltage, thereby increasing the active output of power supply equipment and reducing line losses. This device is designed for indoor or outdoor installation.
Key Features
1. Voltage Support & Stabilization: By injecting capacitive reactive power, it helps to maintain and stabilize busbar voltage levels within specified limits, especially in networks with fluctuating loads or long transmission lines.
2. Modular & Parallel Design:The “Parallel Capacitor” design typically involves multiple capacitor banks connected in parallel, allowing for flexible, scalable, and stepwise compensation. This modularity enables easy capacity adjustment to match specific system requirements and facilitates maintenance.
3. High-Voltage Application: Engineered for direct connection to high-voltage systems (e.g., 6kV, 10kV, 35kV, or higher), it eliminates the need for step-down transformers, reducing overall system complexity, footprint, and energy losses associated with lower-voltage compensation schemes.

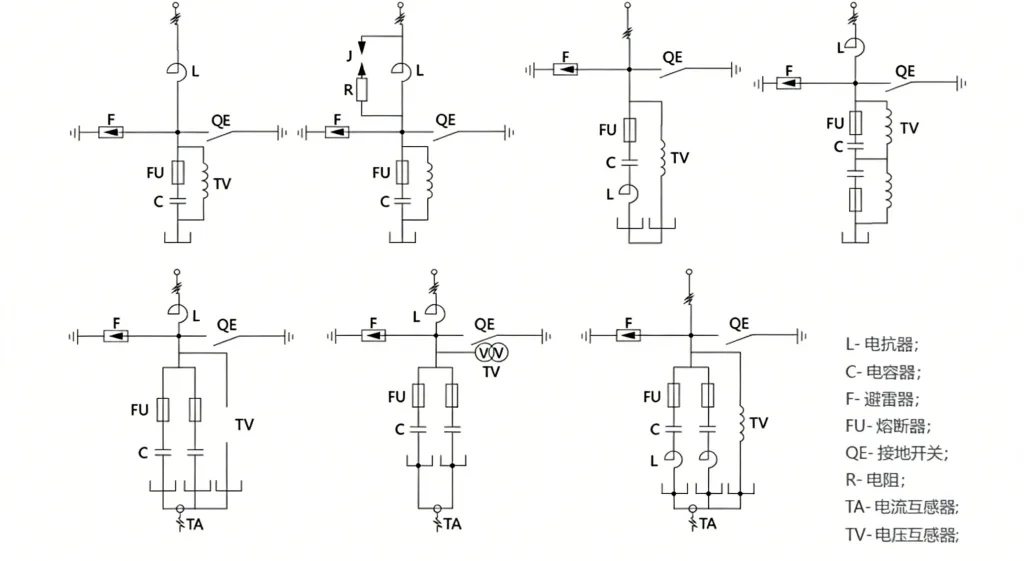

Single-line diagram

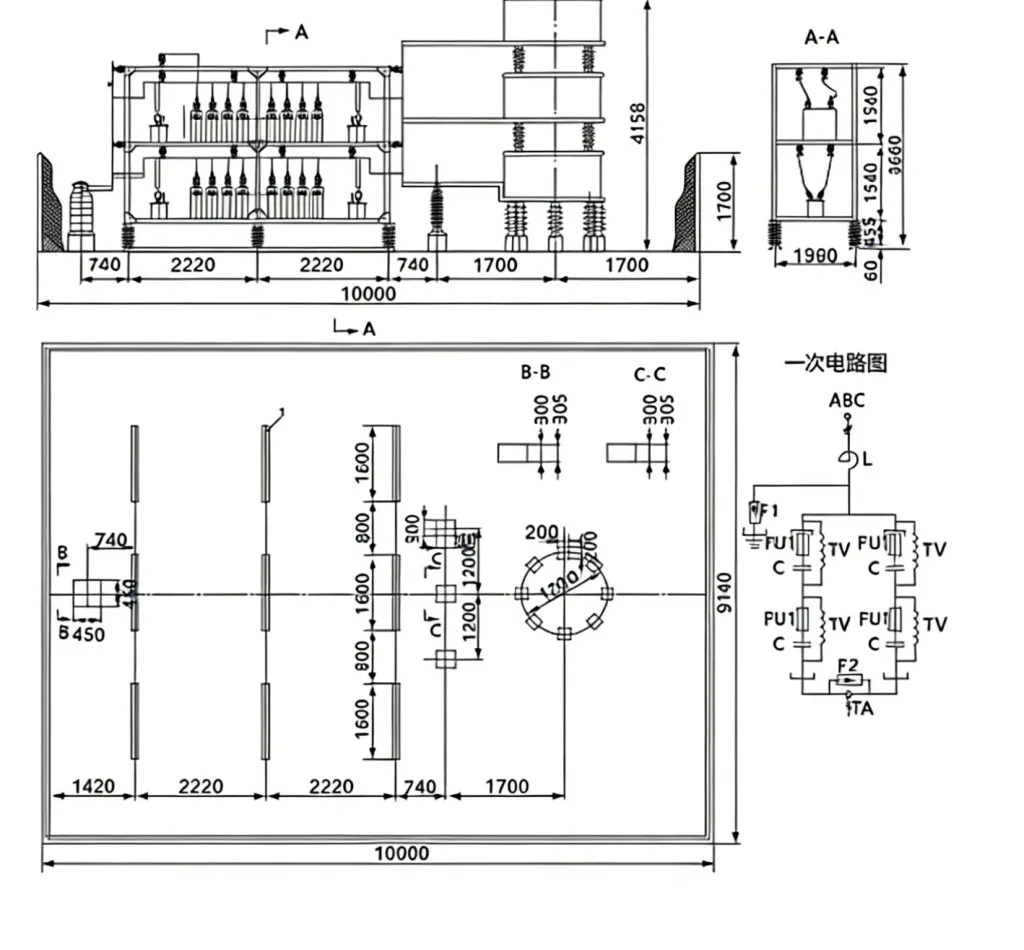

Capacitor Bank Layout Diagram
