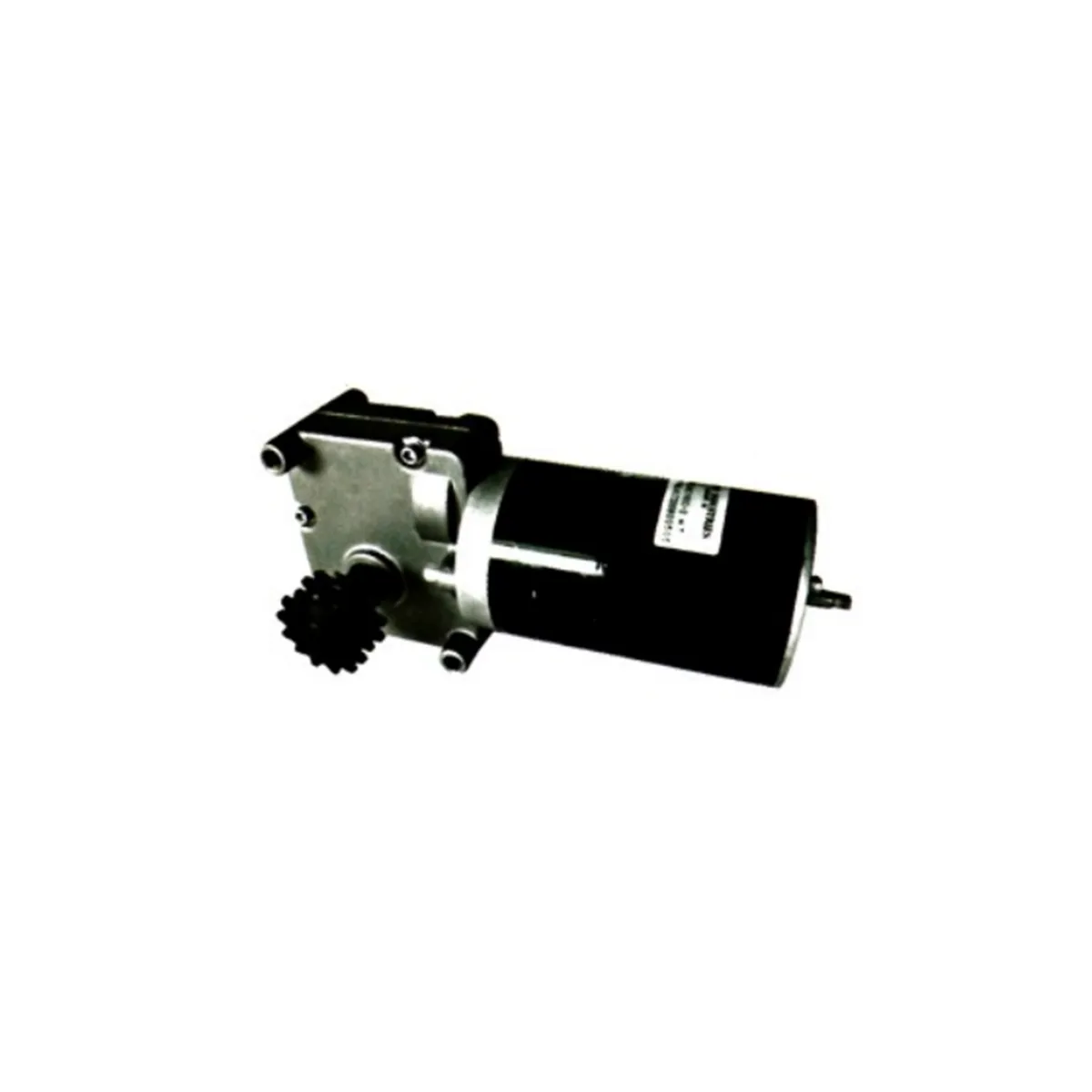

Aierway ZY-CJ series permanent magnet dc motor

Product introduction

The ZY-CJ Series is a comprehensive range of permanent magnet DC (PMDC) motors engineered for precision applications requiring stable torque output, compact design, and multi-voltage compatibility. These motors are widely used in industrial automation, medical equipment, automotive systems, and consumer electronics due to their reliability and adaptability across diverse operating conditions.

Key Features

1. Multi-Voltage Support

   • Operates on DC 24V to DC 220V (model-specific variants).

   • Custom windings available for specialized voltage requirements.

2. High Torque Density

   • Delivers up to 40 N·m torque in compact frame sizes (e.g., 45mm–66mm).

   • Low cogging torque design (<5% of rated torque).

3. Robust Construction

   • Class F insulation (155°C thermal resistance).

   • IP54 protection (dust and splash-resistant).

   • Hardened steel shafts with anti-corrosion treatment.

4. Energy Efficiency

   • ≥85% efficiency at rated load.

   • Low no-load current consumption.

Main Technical Parameters of Electric Motor

Outline and dimensions of installation
