Product introduction

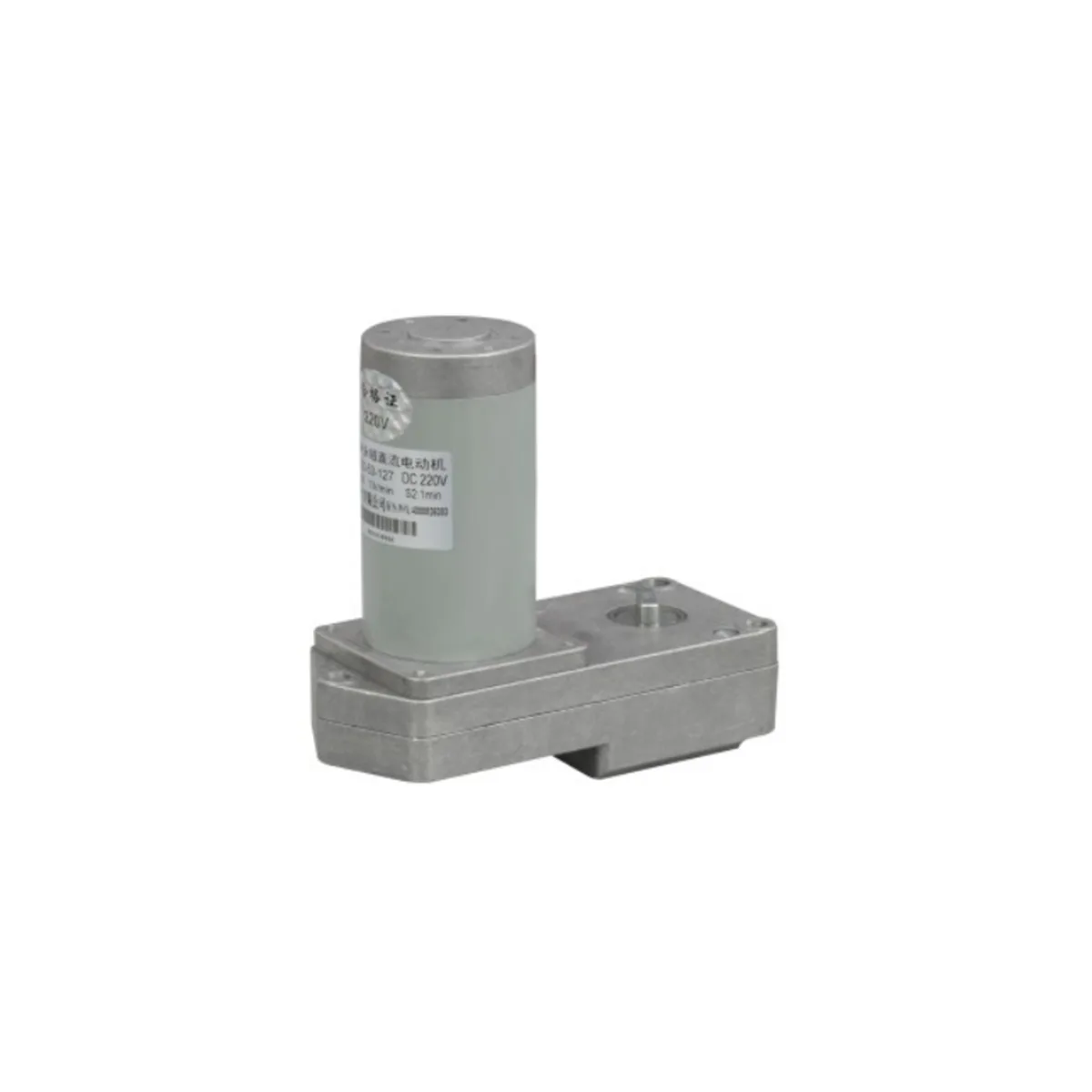

The ZYJ-53 series permanent magnet DC motor is specifically engineered to power spring-operated mechanisms in ZW32-1 type vacuum circuit breakers. This motor-charging system combines high torque output with precise control to ensure reliable breaker operation in 10kV-40.5kV distribution network.
Design Features
-
Breaker-Specific Optimization
-
Direct coupling with ZW32-1 charging mechanism
-
Anti-jamming design for spring compression
-
Automatic position detection (limit switches included)
-
-
High Reliability Components
-
Class H insulation (180°C)
-
IP65 protection (dust-tight and water-resistant)
-
Corrosion-resistant stainless steel shaft
-
-
Intelligent Control
-
Built-in charging cycle counter
-
Overcurrent protection (30A fast-acting)
-
Remote operation interface (RS485 optional)
-
Technical data table 1
| 电压(V) | 额定电流(A) | 额定功率(W) | 额定转矩N.m | 额定转速r/min |
|---|---|---|---|---|
| DC220、DC110 | 0.5、1 | 40 | >25 | 15 |
Outline and dimensions of installation
