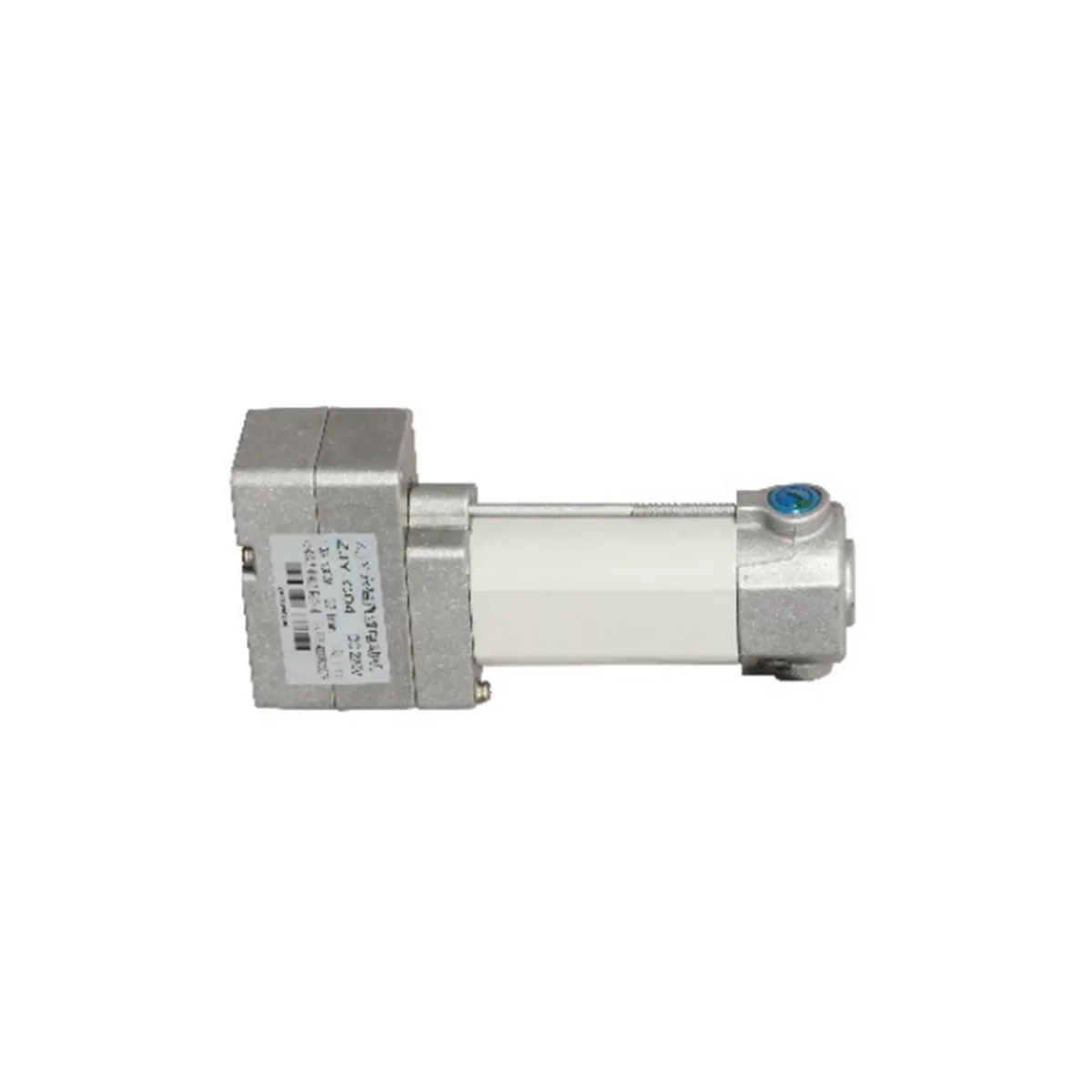

ZYJ40-150、ZYJ-250 permanent magnet DC motor
ZYJ40-150、ZYJ-250 permanent magnet DC motor

Aierway ZYJ40-150、ZYJ-250 permanent magnet DC motor

The ZYJ40 series represents heavy-duty permanent magnet DC motors designed for industrial applications requiring high torque at low speeds.



分类： 标签： , 品牌：

Product introduction

The ZYJ40 series represents heavy-duty permanent magnet DC motors designed for industrial applications requiring high torque at low speeds.

Key Features

  1. High Torque Design

    • ZYJ40-250 delivers 39.8 N·m at 60 rpm

    • ZYJ40-150 provides 23.9 N·m at same speed

    • Torque stability: ±5% under load variations

  2. Robust Construction

    • Hardened steel shafts with keyways

    • IP54 protection (dust and splash proof)

    • Double-sealed bearings (≥10,000 hrs L10 life)

  3. Thermal Management

    • Class E insulation withstands 120°C

    • Aluminum heat dissipation fins (optional)

Technical data table 1

产品型号 额定电压(V) 额定功率(W) 额定电流(A) 额定转速r/min 额定转矩N.m 工作制1 min 绝缘等级
ZYJ40-250 DC220 250 1.6 60 39.8 S2 E
DC110 250 3.2 60 39.8 S2 E
ZYJ40-200 DC220 200 1.28 60 31.8 S2 E
DC110 200 2.56 60 31.8 S2 E
ZYJ40-150 DC220 150 0.96 60 23.9 S2 E
DC110 150 1.92 60 23.9 S2 E

Outline and dimensions of installation
