Product introduction
The Aierway GCS Low-Voltage Withdrawable Switchgear is a highly modular, fully compartmentalized, and intelligent power distribution and motor control solution designed for demanding low-voltage applications across industrial, commercial, and infrastructural sectors.
Core Design Philosophy & Features
1. Advanced Withdrawable & Modular Design:
-At its core, the GCS system is built around standardized, functionally independent withdrawable units (drawers). Each drawer—housing circuit breakers, motor starters, contactors, or instrumentation—can be easily inserted, withdrawn, or replaced without disrupting adjacent circuits. This design features distinct Connected, Test, Disconnected, and Withdrawn** positions, enabling safe maintenance, testing, and rapid fault recovery.
2. High Safety and Segregation:
– Busbar Chamber: For main horizontal and vertical busbars.
– Functional Unit Chamber: Houses the withdrawable drawers.
3. Superior Performance Parameters:
– High Current Capacity: Horizontal busbars typically rated up to 4000A – 6300A.
– Strong Fault Withstand: Short-time withstand current (Icw) can reach 50kA – 100kA for 1 second, with corresponding high peak withstand currents (Ipk).
Technical data table
| No. | Item | Parameter |
|---|---|---|
| 1 | Main circuit rated voltage (V) | AC 380(400), (660) |
| 2 | Auxiliary circuit rated voltage (V) | AC 220, 380(400); DC 110, 220 |
| 3 | Rated frequency (Hz) | 50(60) |
| 4 | Rated insulation voltage (V) | 660(1000) |
| 5 | Rated current (A) |
Horizontal Busbar≤ 4000 Vertical Busbar （MCC）：1000 |
| 6 | Busbar rated short-time withstand current (kA, 1s) | 50, 80 |
| 7 | Busbar rated peak withstand current (kA/0.1s) | 105, 176 |
| 8 | Power frequency test voltage (V/1min) |
Main circuit: 2500 Auxiliary circuit:1760 |
| 9 | Busbar | Three-phase five-wire system: A.B.C.PE.N |
| 10 | Degree of protection | IP30, IP40 |

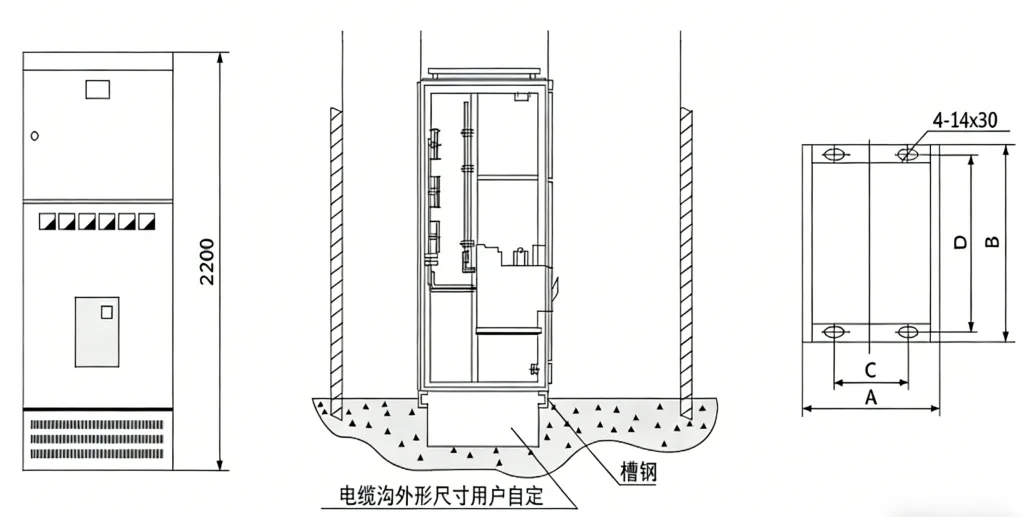

Outline and dimensions of installation
