Product introduction
The AIERWAY ZW32-12 is a state-of-the-art, fully integrated outdoor pole-mounted vacuum circuit breaker designed specifically for medium-voltage distribution networks (12 kV systems). This innovative product combines high-performance primary switching equipment with intelligent secondary protection and control systems in a single, compact unit, delivering exceptional reliability, safety, and smart grid compatibility for modern power distribution applications.
Key Features & Technical Advantages
1. Advanced Integration Design
-Primary-Secondary Integration: Seamlessly combines the vacuum interrupting chamber (primary equipment) with microprocessor-based protection relays, measurement units, and communication modules (secondary equipment)
– Compact Architecture: Significantly reduced footprint compared to conventional solutions requiring separate control cabinets
– Factory Pre-configured: Pre-wired, pre-tested, and ready for installation, minimizing field commissioning time and potential errors
2. Vacuum Interruption Technology
– High Breaking Capacity: Typically 20-25 kA short-circuit interrupting capability
– Long Electrical Life: ≥10,000 full load operations
3. Smart Grid Communication
– Multiple Protocol Support: IEC 61850, DNP3.0, Modbus RTU/TCP, IEC 60870-5-101/104
– Remote Operation: Full SCADA compatibility for remote monitoring and control
Technical data table
| Project Name | unit | Technical parameters |
|---|---|---|
| Rated voltage | kV | 12 |
| Rated frequency | Hz | 50 |
| Rated current | A | 630 |
| Rated short-time withstand current | kA | 20 |
| Rated peak withstand current | kA | 50 |
| Rated short-circuit duration | s | 4 |
| Rated short-circuit current breaking times | time | 30 |
| Rated cable charging current | A | 25 |
| Partial discharge | PC | ≤ 20 |
|
Rated Power-Frequency Withstand Voltage (1 min) (Relative-to-Earth/Phase-to-Phase) Rated Power-Frequency Withstand Voltage (1 min) (Across the Break) Rated Power-Frequency Withstand Voltage (1 min) (Auxiliary and Control Circuits) |
kV kV kV |
42 48 0.2 |
|
Rated lightning impulse withstand voltage (relative to ground) Rated lightning impulse withstand voltage (break) |
kV
kV |
75 85 |
| Rated operating sequence | O-0.3s-CO-180s-CO | |
| Mechanical life | time | Spring mechanism：10000；Permanent magnet mechanism：30000 |
| Weight | Kg | 150 |
| Overall dimensions | mm | 950×500×700 |

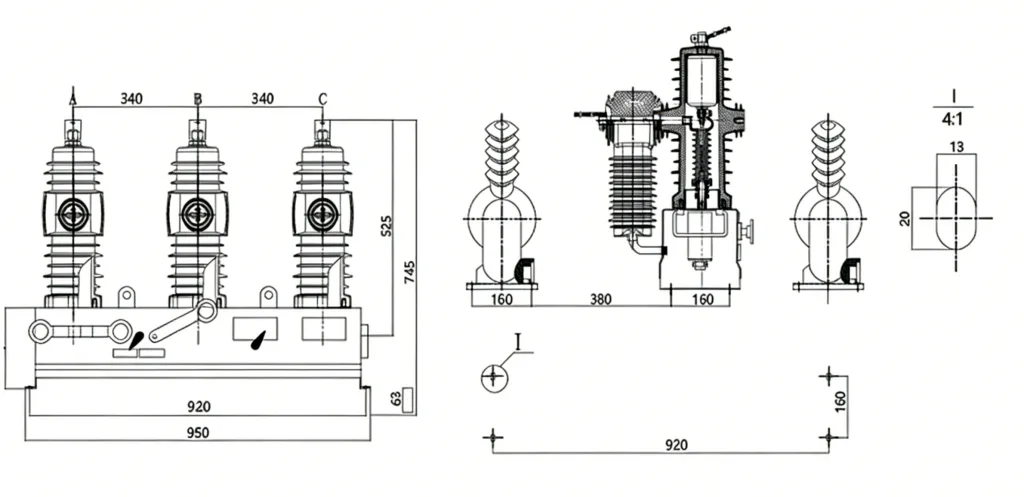

Outline and dimensions of installation
