Product introduction

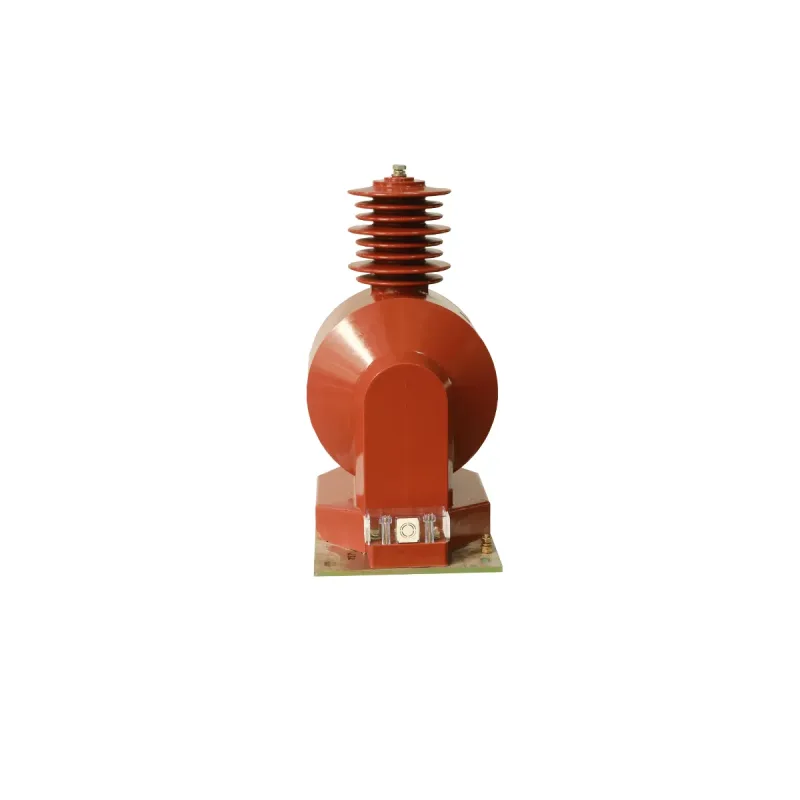

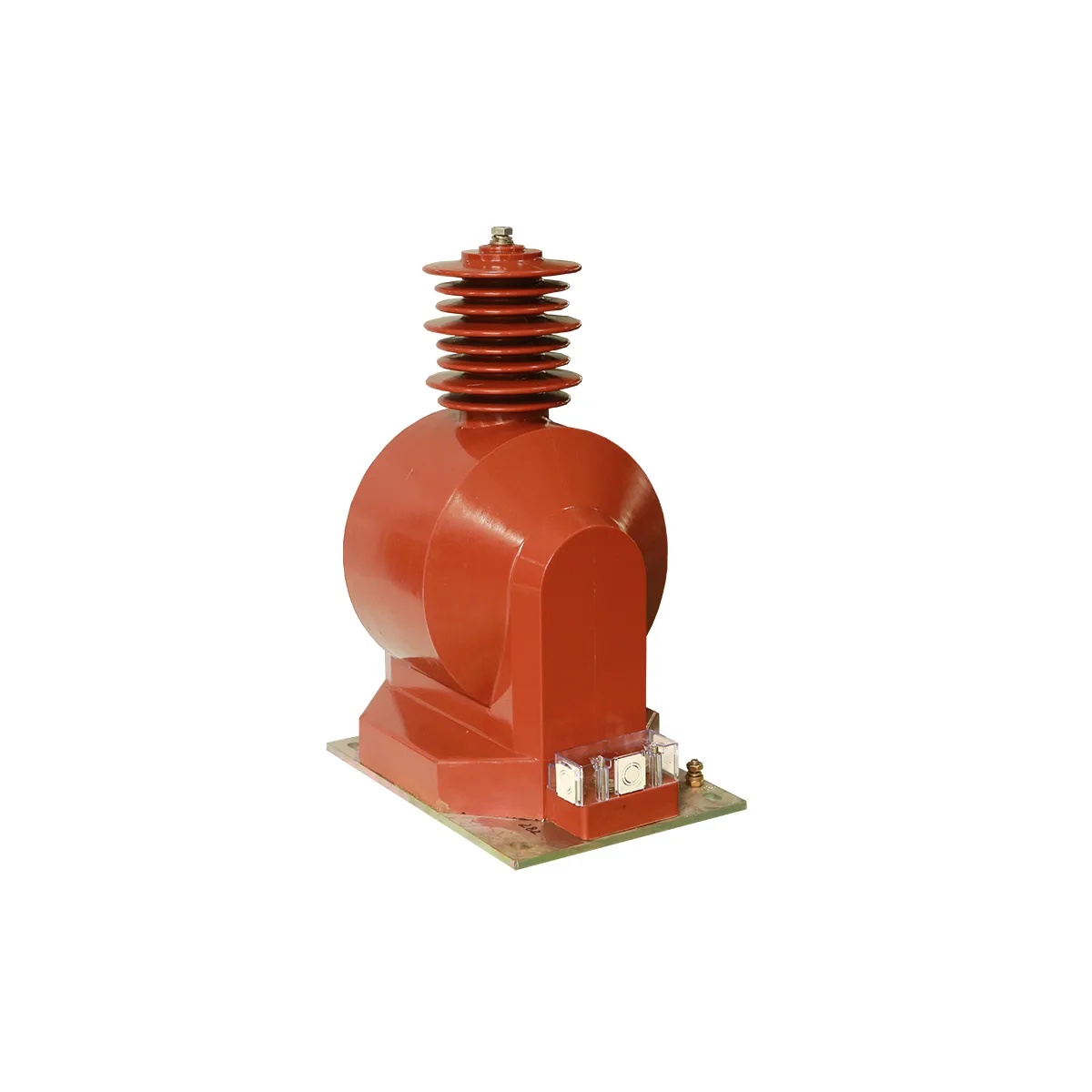

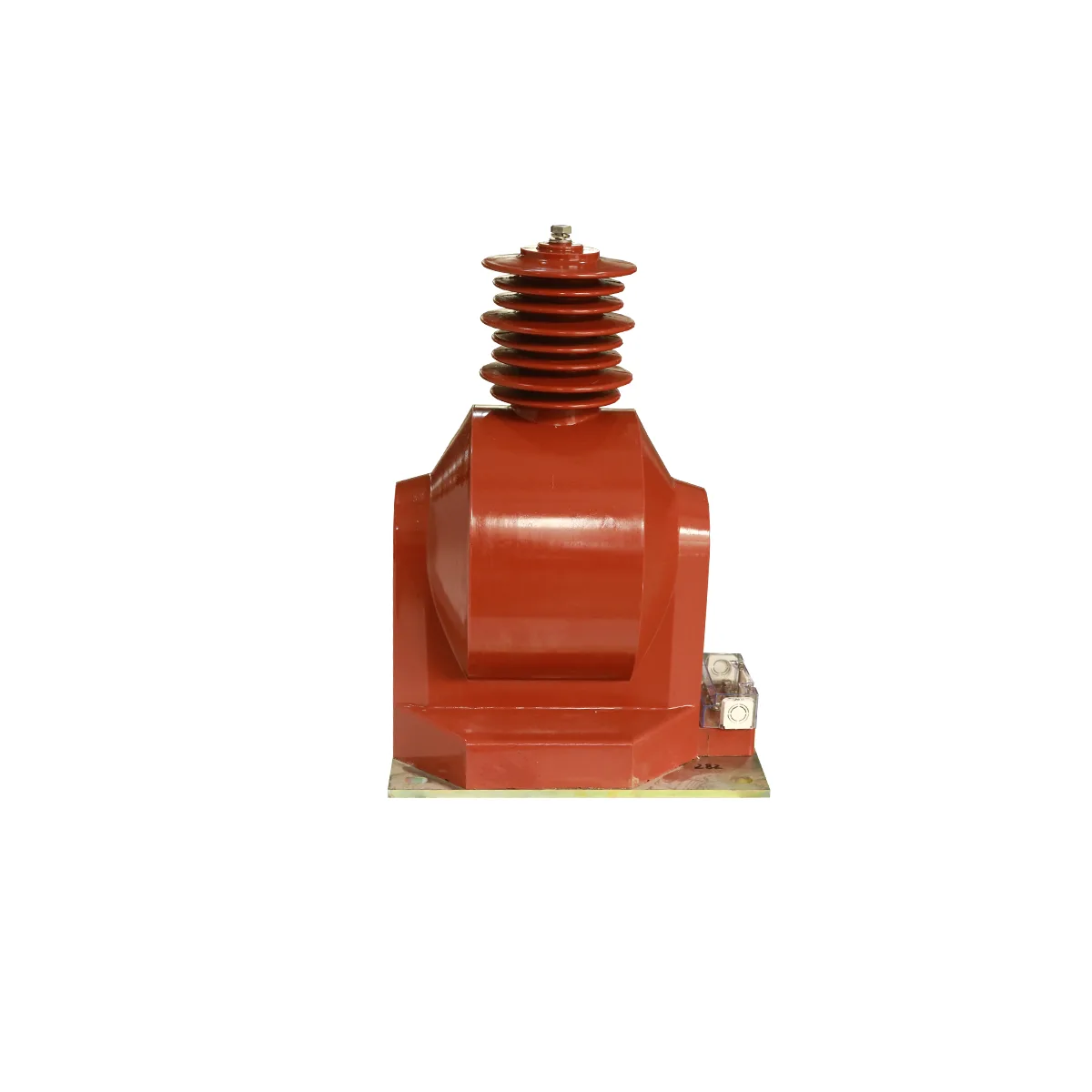

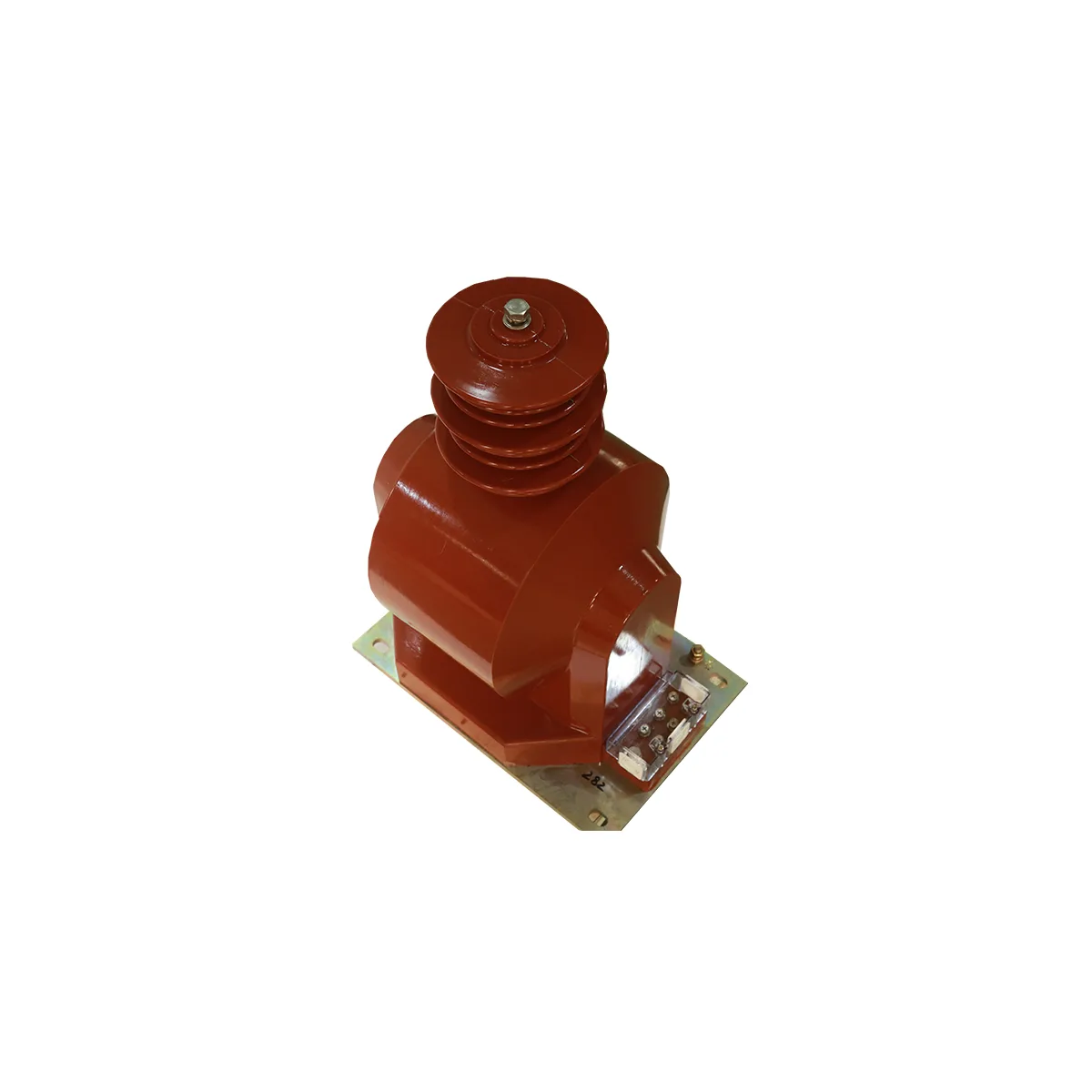

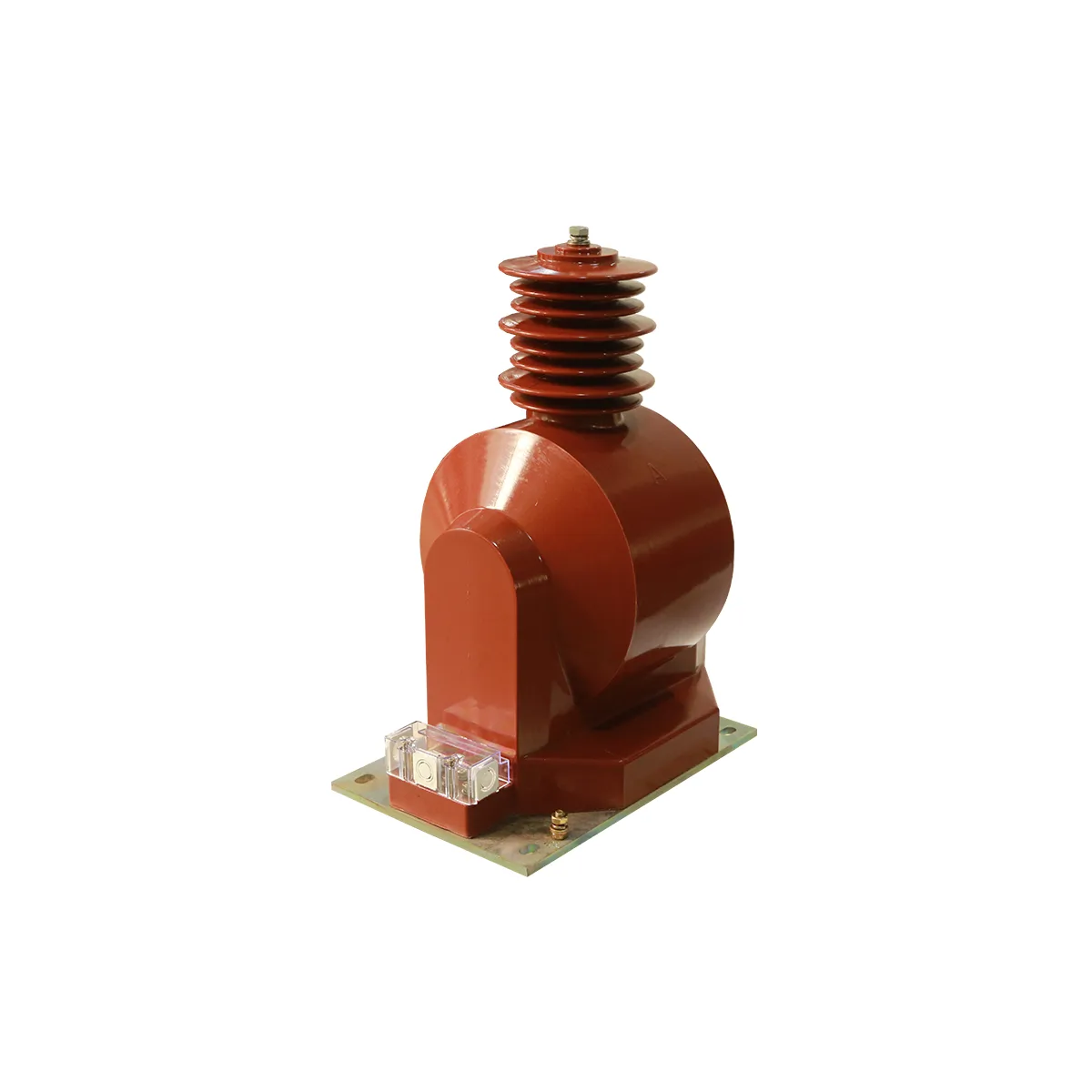

The JDZX935A is a high-precision, resin-cast voltage transformer designed for medium-voltage power systems. It provides accurate voltage transformation for metering, protection, and monitoring applications in 10kV-35kV distribution networks.
Key Features
✔ High Accuracy
·Measurement:Class 0.2, 0.5 (IEC 60044-2)
·Protection: Class 3P, 6P (for fault detection)
✔ Robust & Reliable
·Epoxy resin insulation– Excellent dielectric strength, moisture resistance, and mechanical durability
·Dry-type, maintenance-free– No oil or SF6 gas required
✔ Compact & Lightweight
·Space-saving design for easy installation in switchgear, RMUs, and control panels
✔ Wide Compatibility
·Secondary output: 100V, 110V, or custom values
·Supports **standard protection relays and energy meters
✔ Safety Compliance
·Meets IEC 60044-2, GB/T 20840, and ANSI standards
Applications
·Energy metering (substations, industrial plants)
·Protection relaying (over/under-voltage, earth fault)
·SCADA & automation systems
·Renewable energy integration (solar/wind farms)
Product advantage
·Long service life – Resistant to environmental stress
·Customizable – Optional secondary taps, mounting styles
·Cost-effective– Low maintenance, high reliability
Technical data table
| Type | Rated voltage ratio | Accuragy cla5scombination | Rated secodary output(VA) | Secondary heat imit output | |||||
| 0.2 | 0.5 | 3 | 3(6)P | ||||||
| JDZX9-35A | 35/ √30.1 √30.1/3 | 0.20.5)/36)P | 30 | 50 | 100 | 400 | |||
| 35/ √30.1//30.1/ √30.1/3 | 0.2/0.5/3(6)P | 30 | 50 | 100 | |||||
| 35/ √30.1//30.22/ √30.1/3 | 0.5/3/3(6)P | 30 | 50 | 300 | 100 | ||||
